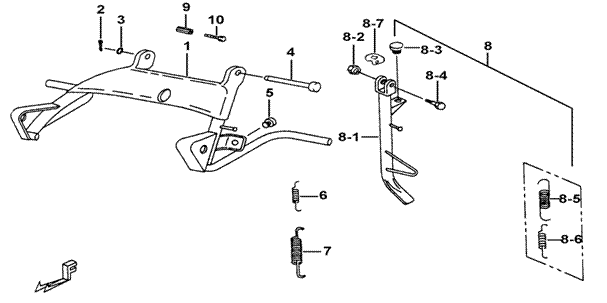

| 20 | STAND | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 412015 | STAND COMP., MAIN | 1 | ||||
| 02 | GA551PN04 | PIN, COTTER | 1 | ||||
| 03 | W99806 | WASHER 8.5X16X2 | 1 | ||||
| 04 | GA551PN03 | SHAFT, MAIN STAND | 1 | ||||
| 05 | 401904 | DAMPER, RUBBER | 1 | ||||
| 06 | GA551SP04 | SPRING 9X107X1.4 | 1 | ||||
| 07 | GA551SP02 | SPRING 16X114X2.8 | 1 | ||||
| 08 | 412005 | STAND COMP., SIDE | 1 | ←675102 | |||
| 08-1 | 412020 | SIDE STAND COMP. | 1 | ←675102 | |||
| 08-1A | 412047 | SIDE STAND COMP. | 1 | 675103→ | |||
| 08-2 | GA551NT02 | NUT, FLANGE SELRLOCK M10x10 | 1 | ||||
| 08-3 | GA551RB05 | CUSHION | 1 | ←675102 | |||
| 08-3A | 412045 | CUSHION | 1 | 675103→ | |||
| 08-4 | GA551SC03 | BOLT | 1 | ←675102 | |||
| 08-4A | S96001 | BOLT | 1 | 675103→ | |||
| 08-5 | 402160 | SPRING, SIDE STAND | 1 | ←675102 | |||
| 08-5A | 412073 | SPRING, SIDE STAND | 1 | 675103→ | |||
| 08-6 | 402161 | SPRING, SIDE STAND | 1 | ←675102 | |||
| 08-6A | 412074 | SPRING, SIDE STAND | 1 | 675103→ | |||
| 08-7 | GA551PS54 | BRKT, SIDE STAND SPRING | 1 | 675103→ | |||
| 08A | 414057 | STAND COMP., SIDE | 1 | 675103→ | |||
| 09 | GA551NT03 | NUT | 1 | ||||
| 10 | GA551SC04 | BOLT | 1 | ||||
