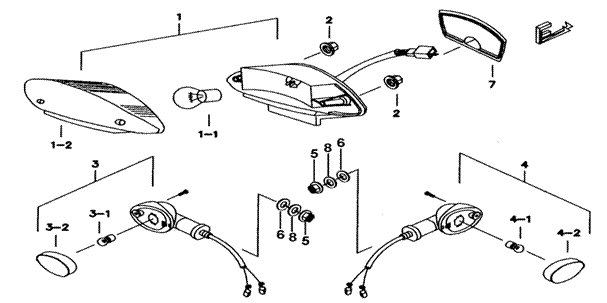

18 REAR LAMP CLUSTER   BR1-D




















ITEM NO PART NO DESCRIPTION Q'TY AMEND NOTE
01 451026 REAR LAMP ASSY. 1
01-1 GF5180002 BULB 12V, P21/5W 1
01-2 451032 LENS, REAR LAMP 1
02 GA554NT04 NUT, FLANGE  M6xP1.0 2
03 451024 TURN SIGNAL LAMP COMP., LH. 1
03-1 GF5170006 BULB, 12V, R10W 1
03-2 451030 LENS, TURN SIGNAL LAMP., LH. REAR 1
04 451025 TURN, SIGNAL LAMP COMP., RH. 1
04-1 GF5170006 BULB, 12V, R10W 1
04-2 451031 LENS, TURN SIGNAL LAMP., RH. REAR 1
05 GA551NT02 NUT, FLANGE SELRLOCK  M10x10 2
06 W99005 WASHER 2t 2
07 451008 FENDER, REAR LAMP 1
08 W10204 WASHER, SPRING 2
