| 17 |

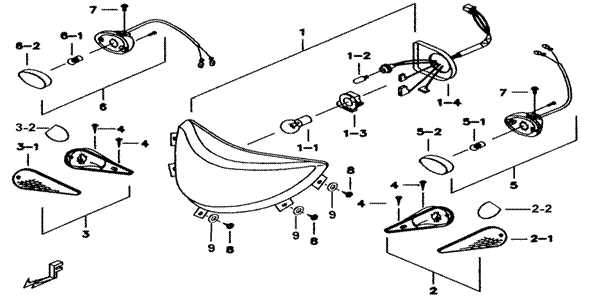

HEAD LAMP AND FRONT TURN SIGNAL LAMP |
|
BR1-D |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO |
PART NO |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
450036 |
HEAD LAMP ASSY. |
1 |
|
|
|
| 01-1 |
GA5520019 |
BULB 12V, 35/35W |
1 |
|
|
|
| 01-2 |
400517 |
BULB 12V, 5W |
1 |
|
|
|
| 01-3 |
450016 |
STAY, MOUNTION |
1 |
|
|
|
| 01-4 |
450046 |
SOCKET COMP. |
1 |
|
|
|
| 02 |
450042 |
FRONT DECORATED COVER ASSY.,
LH.(BLACK) |
1 |
|
|
|
| 02-1 |
450047 |
DECORATED COVER LH.(BLACK) |
1 |
|
|
|
| 02-1A |
450029 |
LENS, TURN SIGNAL, LH. FRONT |
1 |
|
|
|
| 02-2A |
450031 |
LENS |
1 |
|
|
|
| 02A |
450063 |
FRONT DECORATED COVER ASSY., LH. |
1 |
|
|
|
| 03 |
450043 |
FRONT DECORATED COVER ASSY.,
RH.(BLACK) |
1 |
|
|
|
| 03-1 |
450048 |
DECORATED COVER RH.(BLACK) |
1 |
|
|
|
| 03-1A |
450030 |
LENS, TURN SIGNAL, RH. FRONT |
1 |
|
|
|
| 03-2A |
450031 |
LENS |
1 |
|
|
|
| 03A |
450064 |
FRONT DECORATED COVER ASSY., RH. |
1 |
|
|
|
| 04 |
GA552SC11 |
SCREW, TAPPING M4X16 |
4 |
|
|
|
| 05 |
450037 |
TURN SIGNAL LAMP COMP., LH.
FRONT |
1 |
|
|
|
| 05-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 05-2 |
450044 |
LENS, TURN SIGNAL, LH. |
1 |
|
|
|
| 06 |
450038 |
TURN SIGNAL LAMP COMP., RH.
FRONT |
1 |
|
|
|
| 06-1 |
GF5170006 |
BULB, 12V, R10W |
1 |
|
|
|
| 06-2 |
450045 |
LENS, TURN SIGNAL, RH. |
1 |
|
|
|
| 07 |
GA552SC06 |
BOLT, OVAL HEAD 5X12 |
2 |
|
|
|
| 08 |
S50401 |
SCREW TAPPING M4X12 |
5 |
|
|
|
| 09 |
GA552WS05 |
WASHER |
5 |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
