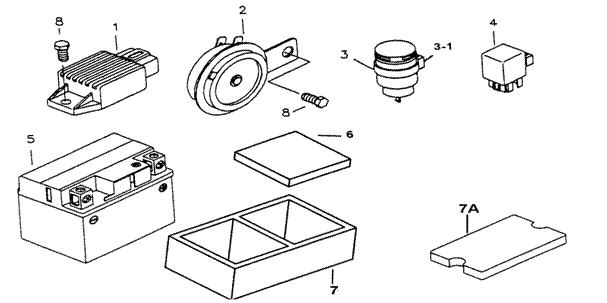

| 14 | BATTERY, HORN, RELAY, RECTIFIER | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | GA5140001 | RECTIFIER | 1 | ||||
| 02 | GF5149906 | HORN ASSY. | 1 | ||||
| 03 | 440800A | RELAY, TURN SIGNAL | 1 | ||||
| 03-1 | 440745 | BUSH, RUBBER | 1 | ||||
| 04 | GA5100004A | RELAY | 1 | ||||
| 05 | 440816A | BATTERY, 5AH | 1 | ||||
| 06 | GF514TH02 | CUSHION | 2 | ||||
| 07 | 440767 | CUSHION, BATTERY | 1 | ←633551 | |||
| 07A | GE514RB01 | CUSHION, BATTERY | 1 | 633552→ | |||
| 08 | GA510SC03 | SCREW, HEX. HEAD M6X16 | 2 | ||||
