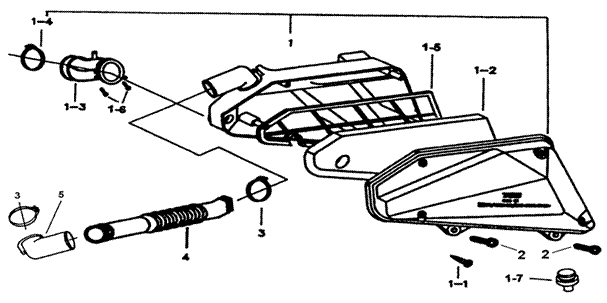

| 9 | AIR CLEANER | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 420001 | CLEANER ASSY., AIR | 1 | ||||
| 01-1 | S51502 | SCREW, TAPPING | 4 | ||||
| 01-2 | 420031 | FILTER | 1 | ||||
| 01-3 | 420003 | TUBE, OUTLET | 1 | ||||
| 01-4 | R66803 | CLIP | 1 | ||||
| 01-5 | 420041 | DIVISION PLATE | 1 | ||||
| 01-6 | S50402 | SCREW,TAPPING M4X10 | 2 | ||||
| 01-7 | 420072 | PLUG, LEAK | 1 | ||||
| 02 | S70603 | SCREW, SOCKET HEAD M6x30 | 2 | ||||
| 03 | 422037 | CLIPφ32 | 2 | ||||
| 04 | 421521 | DUCT, COOLING | 1 | ||||
| 05 | 420078 | PIPE COMP., INTAKE (INCLUDING A/C BUSH) | 1 | ||||
