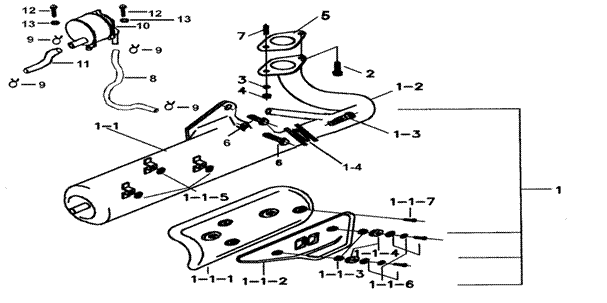

| 701 | MUFFLER(616327→) | BR1-D | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 426186 | BODY COMP., MUFFLER | 1 | 616327~631992 | |||
| 01-1 | 426187 | BODY, MUFFLER | 1 | 616327~631992 | |||
| 01-1-1 | 426040 | COVER, MUFFLER (INSIDE) | 1 | ||||
| 01-1-2 | 426041 | COVER, MUFFLER (OUTSIDE) | 1 | ||||
| 01-1-3 | 426043 | SPACER | 2 | ||||
| 01-1-4 | 426044 | CUSHION, MUFFLER COVER | 2 | ||||
| 01-1-5 | W99703 | WASHER 7X16X2 | 3 | ||||
| 01-1-6 | 426042 | SCREW SET, MUFFLER COVER | 2 | ||||
| 01-1-7 | S45605 | SCREW, OVAL HEAD M6X12 | 3 | ||||
| 01-1A | 426167Y | BODY, MUFFLER | 1 | 631993→ | |||
| 01-2 | 426127 | PIPE, MUFFLER | 1 | 616327~631992 | |||
| 01-2A | 426166Y | PIPE, MUFFLER | 1 | 631993→ | |||
| 01-3 | S79801 | BOLT, HEX HEAD | 2 | ||||
| 01-4 | 426104 | GASKET, MUFFLER | 2 | ||||
| 01A | 426165YC | BODY COMP., MUFFLER (FOR 45 KM/HR) | 1 | 631993→ | |||
| 02 | GA509SC05 | BOLT, FLANGE M6X20 | 1 | ||||
| 03 | GA504WS04 | WASHER, SPRING | 1 | ||||
| 04 | GA509NT01 | NUT, HEX. HEAD M6 | 1 | ||||
| 05 | GA509PK01 | GASKET, EXHAUST PIPE | 1 | ||||
| 06 | S21002 | BOLT, FLANGE | 2 | ||||
| 07 | GA509SC06 | STUD M6X25 | 1 | ||||
| 08 | 426080 | HOSE, RUBBER | 1 | ||||
| 09 | R40902 | CLIP | 4 | ||||
| 10 | 426141 | SECOND-AIR CONTROL ASSY. | 1 | ||||
| 11 | 426085 | HOSE, RUBBER | 1 | ||||
| 12 | S70607 | SCREW, SOCKET HEAD M6X20 | 2 | ||||
| 13 | W99602 | WASHER 6.5X12X1.0 | 2 | ||||
