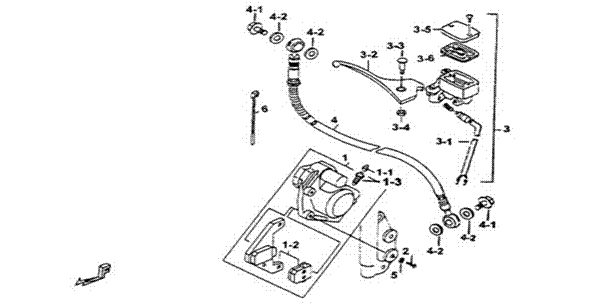

| 35 | CALIPER, MASTER CYLINDER | BH1 | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 401851 | CALIPER | 1 | ||||
| 01-1 | GA559RB01 | CAP, GUARD | 1 | ||||
| 01-2 | GF5359902 | PAD ASSY. | 1 | ||||
| 01-3 | GA559SC01 | BOLT, FLANGE | 1 | ||||
| 02 | GA558SC03 | BOLT, HEX. HEAD M8X35 | 2 | ||||
| 03 | GF5360001 | MASTER CYLINDER | 1 | ||||
| 03-1 | GF5369902 | LIMITED SWITCH ASSY., FRONT BRAKE LAMP, RH. | 1 | ||||
| 03-2 | 401020 | LEVER, HANDLE BAR | 1 | ||||
| 03-3 | S46501 | SCREW 6X30 | 1 | ||||
| 03-4 | N25401 | NUT M14 | 1 | ||||
| 03-5 | GF536AL01 | CAP, MASTER CYLINDER | 1 | ||||
| 03-6 | GF536RB01 | DIAPHRAM | 1 | ||||
| 04 | BH1369901 | HOSE ASSY., FRONT BRAKE | 1 | ||||
| 04-1 | S21001 | OIL BOLT M10X1.25X22L | 2 | ||||
| 04-2 | GA559WS04 | WASHER, 10.2X15X1.2t | 4 | ||||
| 05 | W99805 | WASHER | 2 | ||||
| 06 | GA510SR01 | CLAMP L150 | 1 | ||||
