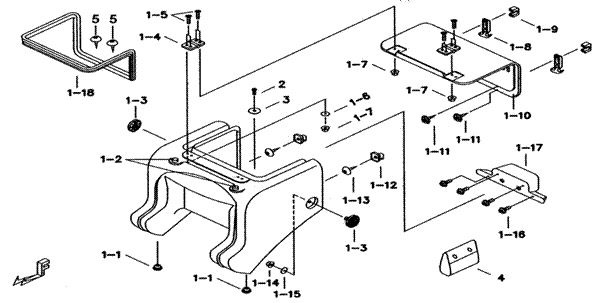

| 2401 | CARGO BOX | BK1-C | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 453026D | CARGO BOX COMP. | 1 | ||||
| 01-1 | 454016 | RUBBER PLUG | 2 | ||||
| 01-10 | 453024A | CARGO BOX, ABOVE | 1 | ||||
| 01-11 | S50505 | SCREW, CROSS RECESSED, PAN HEAD | 4 | ||||
| 01-12 | 453023 | CARGO BOX TO PULL | 2 | ||||
| 01-13 | GA554SC02 | SCREW, TAPPING | 2 | ||||
| 01-14 | N12603 | NUT M6 | 2 | ||||
| 01-15 | W99605 | WASHER | 2 | ||||
| 01-16 | S07501 | BOLT,HEX HEAD | 4 | ||||
| 01-17 | 453019 | REAR LAMP HOUSING | 1 | ||||
| 01-18 | 453027 | ORNAMENTAL | 1 | ||||
| 01-2 | 401904 | DAMPER, RUBBER | 2 | ||||
| 01-3 | 453030 | REFLECTOR, REAR | 2 | ||||
| 01-4 | 453020 | CARGO BOX CRAMP | 2 | ||||
| 01-5 | S99612 | SCREW, HEX HEAD | 8 | ||||
| 01-6 | W99605 | WASHER | 4 | ||||
| 01-7 | GA554NT04 | NUT, FLANGE M6xP1.0 | 8 | ||||
| 01-8 | 453021 | CARGO BOX TO PULL | 2 | ||||
| 01-9 | 453022 | CARGO BOX TO PULL, BODY | 2 | ||||
| 02 | S72803 | BOLT, SOCKET(FOR CARRIER) | 6 | ||||
| 03 | W99816 | WASHER 8.4X38X1.6t | 6 | ||||
| 04 | 421516 | PACKAGE, TOOL | 1 | ||||
| 05 | S50401 | SCREW TAPPING M4X12 | 2 | ||||
