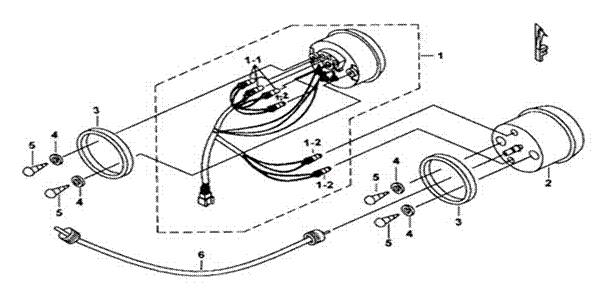

| 16 | SPEEDOMETER | BK1-C | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 410195 | GAUGE ASSY., FUEL LEVEL | 1 | ←614480 | |||
| 01-1 | GA5520009 | BULB (12V, 1.7W) | 3 | ||||
| 01-2 | 410154 | BULB, BLACK HEAD(12V,1.7W) | 3 | ||||
| 01A | 457098 | GAUGE ASSY., FUEL LEVEL | 1 | 614481→ | |||
| 02 | 457075 | SPEEDOMETER ASSY. | 1 | ←614480 | |||
| 02A | 457122 | SPEEDOMETER ASSY. | 1 | 614481→ | |||
| 03 | GE516RB01 | PACKING, RUBBER | 2 | ||||
| 04 | W99602 | WASHER 6.5X12X1.0 | 4 | ||||
| 05 | GA510SC01 | SCREW, SOCKET HEAD M6X16 | 4 | ||||
| 06 | 401661 | CABLE ASSY., SPEEDOMETER | 1 | ||||
