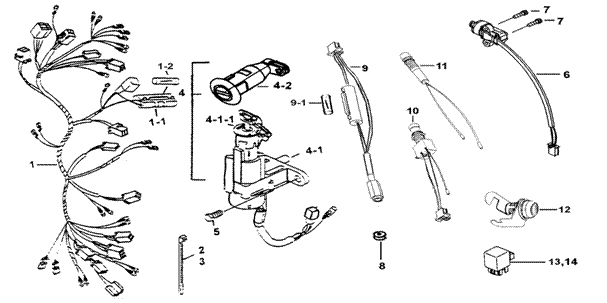

| 15 | WIRING HARNESS AND LOCK SET | BK1-C | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 440971 | WIRING HARNESS | 1 | ←673769 | |||
| 01-1 | GF5159906 | CASE SET, FUSE | 1 | ||||
| 01-2 | GF5159907 | FUSE 7A | 1 | ||||
| 01A | 441035 | WIRING HARNESS | 1 | 673770→ | |||
| 02 | GA510SR01 | CLAMP L150 | 2 | ||||
| 03 | GA510SR02 | CLAMP L200 | 3 | ||||
| 04 | 440765 | LOCK ASSY. | 1 | ||||
| 04-1 | 440774 | LOCK SET, STEERING | 1 | ||||
| 04-1-1 | BH115PL01 | CAP, INDICATOR | 1 | ||||
| 04-2 | 440744-S | LOCK SET, SEAT | 1 | ||||
| 05 | S71603 | BOLT, BREAKABLE, HEX. HEAD M6X16 | 2 | ||||
| 06 | 440935 | SWITCH, SIDE STAND | 2 | ||||
| 07 | S79501 | SCREW, SOCKET HEAD M5x16 | 4 | ||||
| 08 | 440948 | BUSH | 1 | ||||
| 09 | 440949 | WIRING | 1 | ||||
| 09-1 | 440984 | FUSE 5A | 1 | ||||
| 10 | 440950 | HEATING SWITCH | 1 | ||||
| 11 | 440951 | HEATING LAMP | 1 | ||||
| 12 | 440957 | LOCK, CARGO BOX | 1 | ||||
| 13 | 440956 | RELAY | 1 | ||||
| 14 | 441018 | RELAY | 1 | 673770→ | |||
