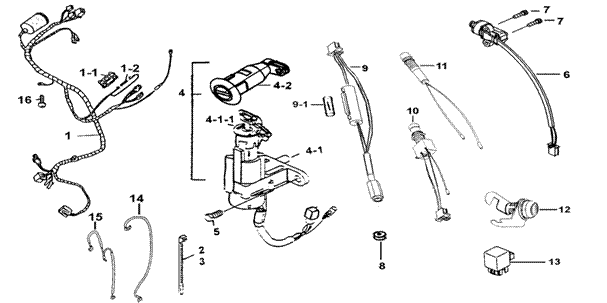

| 15 | WIRING HARNESS AND LOCK SET | BK9-F | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 440970 | WIRING HARNESS | 1 | ||||
| 01-1 | GF5159906 | CASE SET, FUSE | 1 | ||||
| 01-2 | GF5159907 | FUSE 7A | 1 | ||||
| 02 | 400535 | CLAMP L300 | 2 | ||||
| 03 | GA510SR02 | CLAMP L200 | 2 | ||||
| 04 | 440765 | LOCK ASSY. | 1 | ||||
| 04-1 | 440774 | LOCK SET, STEERING | 1 | ||||
| 04-1-1 | BH115PL01 | CAP, INDICATOR | 1 | ||||
| 04-2 | 440744-S | LOCK SET, SEAT | 1 | ||||
| 05 | GA510SC03 | SCREW, HEX. HEAD M6X16 | 2 | ||||
| 06 | 440935 | SWITCH, SIDE STAND | 2 | ||||
| 07 | S79501 | SCREW, SOCKET HEAD M5x16 | 4 | ||||
| 08 | 440948 | BUSH | 1 | ||||
| 09 | 440949 | WIRING | 1 | ||||
| 09-1 | 440984 | FUSE 5A | 1 | ||||
| 10 | 440950 | HEATING SWITCH | 1 | ||||
| 11 | 440951 | HEATING LAMP | 1 | ||||
| 12 | 440957 | LOCK, CARGO BOX | 1 | ||||
| 13 | 440956 | RELAY | 2 | ||||
| 14 | 440966 | HARNESS, STARTING | 1 | ||||
| 15 | 400533 | HARNESS, EARTH | 1 | ||||
| 16 | GA556SC01 | BOLT, FLANGE M6X1.0X12L | 2 | ||||
