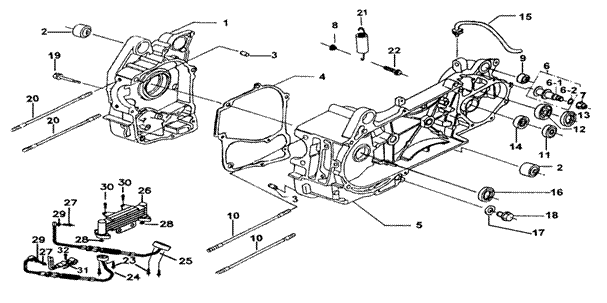

| 2 | CRANK CASE | BK9-F | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 422033 | CRANK CASE COMP., RH. | 1 | ||||
| 02 | 400026 | BUSH COMP. | 2 | ||||
| 03 | P40802 | PIN, DOWEL 8X14 | 2 | ||||
| 04 | 400031 | GASKET, CRANKCASE | 1 | ||||
| 05 | 422034 | CRANKCASE COMP., LH. | 1 | ||||
| 06 | 422027 | PIN, BRAKE SHOE ASSY. | 1 | ||||
| 06-1 | 422008 | PIN, BRAKE SHOE | 1 | ||||
| 06-2 | 400036 | O RING | 1 | ||||
| 07 | N25801 | NUT, SELFLOCK M8 | 1 | ||||
| 08 | GA504NT01 | NUT, FLANGE M6 | 2 | ||||
| 09 | 400038 | BUSH COMP. | 1 | ||||
| 10 | S95802 | STUB M8x195.5 | 2 | ||||
| 11 | 400039 | BEARING CSB301JR2 | 1 | ||||
| 12 | 400040 | BEARING 6004uu | 1 | ||||
| 13 | 400041 | OIL SEAL 27X42X7 | 1 | ||||
| 14 | 400042 | BEARING 6002 | 1 | ||||
| 15 | 400043 | TUBE SET, BREATHER | 1 | ||||
| 16 | 400155 | OIL SEAL 19.8X30X5 | 1 | ||||
| 17 | W99201 | WASHER 12mm | 1 | ||||
| 18 | S20201 | BOLT,OUTLET 12mm | 1 | ||||
| 19 | S24602 | BOLT, FLANGE M6X50 | 1 | ||||
| 20 | S95801 | STUB M8x187.5 | 2 | ||||
| 21 | 422028 | SPRING, REAR BRAKE | 1 | ||||
| 22 | S24614 | BOLT, FLANGE | 1 | ||||
| 23 | S24605 | BOLT,FLANGE M6X25 | 4 | ||||
| 24 | 427038 | HOSE ASSY., INTLET. OIL COOLER | 1 | ||||
| 25 | 427036 | HOSE ASSY., OUTLET. OIL COOLER | 1 | ||||
| 26 | 427010 | OIL COOLER | 1 | ||||
| 27 | 427011 | BOLT, HOSE B | 2 | ||||
| 28 | 427012 | O RING | 2 | ||||
| 29 | W99210 | WASHER | 4 | ||||
| 30 | S24603 | BOLT, FLANGE M6x16 | 2 | ||||
| 31 | 427014 | CLAMP, HOSE | 1 | ||||
| 32 | S24603 | BOLT, FLANGE M6x16 | 1 | ||||
