| 219 |

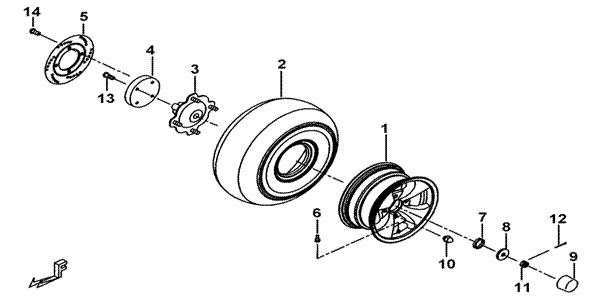

REAR WHEEL |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO |
PART NO |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
513405MBY |
RIM COMP. 12"(MAT
BLACK)(STEEL) |
2 |
|
|
|
| 01A |
513405SGY |
RIM COMP.
12"(SILVER)(STEEL) |
2 |
|
OPTION |
|
| 01B |
513405BLY |
RIM COMP. 12"(BLACK)(STEEL) |
2 |
|
OPTION |
|
| 01C |
513423SGY |
RIM COMP, REAR
12"(SILVER)(AL) |
2 |
|
OPTION |
|
| 01D |
513423SGAY |
RIM COMP, REAR
12"(POLISHED)(AL) |
2 |
|
OPTION |
|
| 01E |
513423BLY |
RIM COMP, REAR
12"(BLACK)(AL) |
2 |
|
OPTION |
|
| 01F |
513423MBY |
RIM COMP, REAR 12"(MAT
BLACK)(AL) |
2 |
|
OPTION |
|
| 02 |
513421Y |
TIRE AT 25X10-12 (INNOVA) |
2 |
|
|
|
| 03 |
513441 |
HUB, REAR WHEEL |
2 |
|
|
|
| 04 |
512842 |
BRAKE HOUSING |
1 |
|
|
|
| 05 |
513414Y |
DISC, BRAKE 220mm |
1 |
|
|
|
| 06 |
512906 |
INLET COMP., AIR |
2 |
|
|
|
| 07 |
513433 |
SPACER |
2 |
|
|
|
| 08 |
W99825 |
WASHER |
2 |
|
|
|
| 09 |
512941 |
RUBBER CAP |
2 |
|
|
|
| 10 |
N05003 |
NUT |
8 |
|
|
|
| 11 |
N13801 |
NUT |
2 |
|
|
|
| 12 |
P10204 |
PIN |
2 |
|
|
|
| 13 |
S72003 |
SCREW, SOCKET |
4 |
|
|
|
| 14 |
S72005 |
SCREW, SOCKET M10 |
4 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
