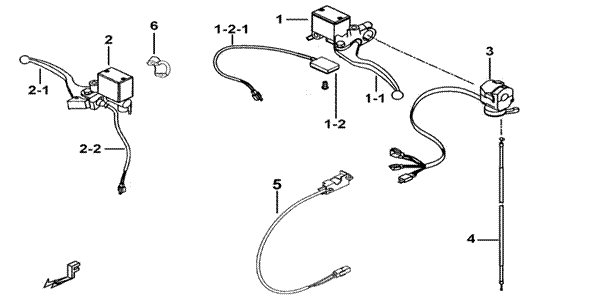

| 216 | MASTER CYLINDER ASSY. | FBE-U | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 514315 | MASTER CYLINDER ASSY., LH. | 1 | ||||
| 01-1 | 515046 | LEVER | 1 | ||||
| 01-2 | 515099 | LIMITED SWITCH ASSY. | 1 | ||||
| 01-2-1 | 515047 | WIRING, LIMITED SWITCH | 1 | ||||
| 02 | 513531 | MASTER CYLINDER ASSY., RH. | 1 | ||||
| 02-1 | 515061 | LEVER | 1 | ||||
| 02-2 | 515062 | LIMITED SWITCH ASSY. | 1 | ||||
| 03 | 513219 | SWITCH ASSY., LH | 1 | ||||
| 04 | 513038 | CABLE, CHOKE | 1 | ||||
| 05 | 513220 | "OVERRIDE" SWITCH | 1 | ||||
| 06 | 513542 | HOLDER | 1 | ||||
