| 203 |

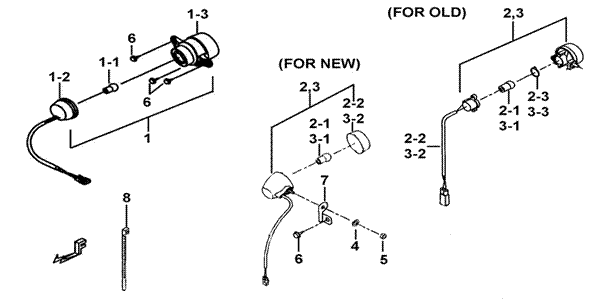

REAR LAMP ASSY. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO |
PART NO |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
511810Y |
REAR LAMP ASSY. |
2 |
|
|
|
| 01-1 |
GF5180002 |
BULB 12V, P21/5W |
2 |
|
|
|
| 01-2 |
514035Y |
WIRING SET, REAR LAMP |
2 |
|
|
|
| 01-3 |
514036Y |
REAR LAMP COMP |
2 |
|
|
|
| 02 |
511758 |
TURN SIGNAL LAMP COMP, LH. |
1 |
←012496 |
|
|
| 02-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 02-2 |
515179 |
SOCKET COMP. LH |
1 |
←012496 |
|
|
| 02-2A |
515157 |
LENS, TURN SIGNAL LH. |
1 |
012497→ |
|
|
| 02-3 |
515192 |
WASHER |
1 |
←012496 |
|
|
| 02A |
511753 |
TURN SIGNAL LAMP COMP, LH |
1 |
012497→ |
|
|
| 03 |
511759 |
TURN SIGNAL LAMP COMP, RH. |
1 |
←012496 |
|
|
| 03-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 03-2 |
515180 |
SOCKET COMP. RH |
1 |
←012496 |
|
|
| 03-2A |
515253 |
LENS, TURN SIGNAL RH. |
1 |
012497→ |
|
|
| 03-3 |
515192 |
WASHER |
1 |
←012496 |
|
|
| 03A |
511754 |
TURN SIGNAL LAMP COMP, RH |
1 |
012497→ |
|
|
| 04 |
W10501 |
SPRING WASHER |
2 |
|
|
|
| 05 |
GA552NT05 |
NUT, FLANGE M5 |
2 |
|
|
|
| 06 |
S57501 |
SCREW,OVAL HEAD, FLANGE M5X14 |
8 |
|
|
|
| 07 |
511814 |
BRKT., TURN SIGNAL LAMP |
2 |
|
|
|
| 08 |
GA510SR01 |
CLAMP L150 |
2 |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
