| 202 |

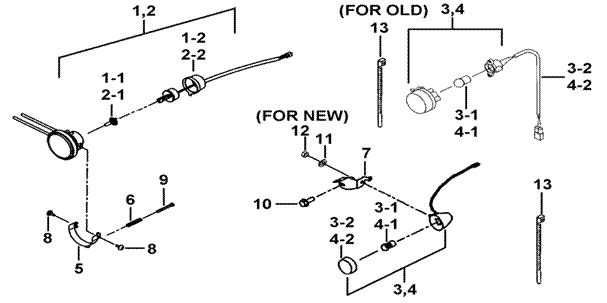

HEAD LAMP ASSY. |
|
FBE-U |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| ITEM NO |
PART NO |
DESCRIPTION |
Q'TY |
AMEND |
NOTE |
|
| 01 |
511741 |
HEAD LAMP ASSY. LH. 55W |
1 |
|
|
|
| 01-1 |
514029 |
BULB 55W(MAIN-BEAN) |
1 |
|
|
|
| 01-2 |
515090 |
SOCKET COMP. |
1 |
|
|
|
| 02 |
511742 |
HEAD LAMP COMP. RH. 55W |
1 |
|
|
|
| 02-1 |
514029 |
BULB 55W(MAIN-BEAN) |
1 |
|
|
|
| 02-2 |
515090 |
SOCKET COMP. |
1 |
|
|
|
| 03 |
511758 |
TURN SIGNAL LAMP COMP, LH. |
1 |
←012496 |
|
|
| 03-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 03-2 |
515179 |
SOCKET COMP. LH |
1 |
←012496 |
|
|
| 03-2A |
515157 |
LENS, TURN SIGNAL LH. |
1 |
012497→ |
|
|
| 03-3 |
515192 |
WASHER |
1 |
←012496 |
|
|
| 03A |
511753 |
TURN SIGNAL LAMP COMP, LH |
1 |
012497→ |
|
|
| 04 |
511759 |
TURN SIGNAL LAMP COMP, RH. |
1 |
←012496 |
|
|
| 04-1 |
514030 |
BULB 10W |
1 |
|
|
|
| 04-2 |
515180 |
SOCKET COMP. RH |
1 |
←012496 |
|
|
| 04-2A |
515253 |
LENS, TURN SIGNAL RH. |
1 |
012497→ |
|
|
| 04-3 |
515192 |
WASHER |
1 |
←012496 |
|
|
| 04A |
511754 |
TURN SIGNAL LAMP COMP, RH |
1 |
012497→ |
|
|
| 05 |
511720 |
ADJUST SEAT |
2 |
|
|
|
| 06 |
511760 |
SPRING 10X34X1.0 |
2 |
|
|
|
| 07 |
511727 |
BRKT. |
2 |
|
|
|
| 08 |
511721 |
BOLT |
4 |
|
|
|
| 09 |
S46507 |
BOLT M5X40L |
2 |
|
|
|
| 10 |
S57501 |
SCREW,OVAL HEAD, FLANGE M5X14 |
2 |
|
|
|
| 11 |
W10501 |
SPRING WASHER |
2 |
|
|
|
| 12 |
GA552NT05 |
NUT, FLANGE M5 |
2 |
|
|
|
| 13 |
GA510SR01 |
CLAMP L150 |
2 |
|
|
|
|
|
|
|
|
|
|
|
