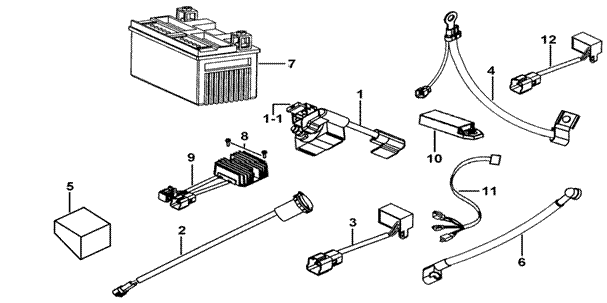

| 120 | BATTERY、RELAY,STARTING MOTOR、RECTIFIER | FBE-U | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 925807 | RELAY, STARTING MOTOR | 1 | ||||
| 01-1 | 552813 | FUSE, 30A | 1 | ||||
| 02 | 923438 | POWER SOURCE | 2 | ||||
| 03 | 924447 | THERMOSWITCH COMP. | 1 | ||||
| 04 | 925816 | CABLE COMP. | 1 | ||||
| 05 | 924464 | CUSHION | 1 | ||||
| 06 | 923432 | STARTING TERMINAL CABLE COMP. | 1 | ||||
| 07 | 924423 | BATTERY 12V 18AH | 1 | ←012722 | |||
| 07A | 924423A | BATTERY 12V 18AH | 1 | 012723→ | |||
| 08 | S70610 | SCREW, SOCKET HEAD M6x25 | 2 | ||||
| 09 | 925803 | RECTIFIER | 1 | ||||
| 10 | 924900 | CONTROLLER, HEATER | 1 | ←005486 | |||
| 11 | 924901 | WIRING, HEATER | 1 | ←005486 | |||
| 12 | 924904 | OIL LIGHT CONTROL UNIT | 1 | ←013071 | |||
