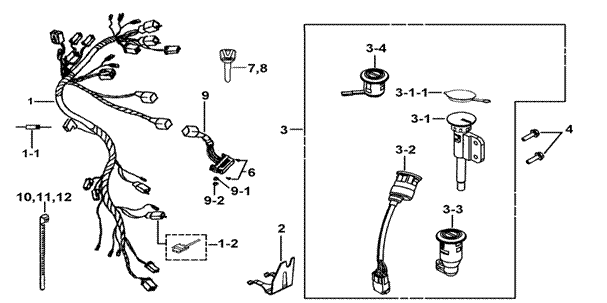

| 119 | WIRING HARNESS、LOCK ASSY. | FBE-U | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924466 | WIRING HARNESS | 1 | ←012037 | |||
| 01-1 | 924944 | DIODE | 2 | ||||
| 01-2 | 925817 | WIRE (RELAY, STARTING) | 1 | ←012496 | |||
| 01A | 924466A | WIRING HARNESS | 1 | 012038→ | |||
| 02 | 401657 | REED | 1 | ←002135 | |||
| 02A | 923437 | REED | 1 | 002136→ | |||
| 03 | 924467 | LOCK ASSY. | 1 | ||||
| 03-1 | 924457-S | LOCK SET, STEERING | 1 | ||||
| 03-1-1 | 924459 | LOCK SET, STEERING CAP | 1 | ||||
| 03-2 | 924424-S | LOCK SET, IG SW. | 1 | ||||
| 03-3 | 440744-S | LOCK SET, SEAT | 1 | ||||
| 03-4 | 924448-S | LOCK | 2 | ||||
| 03-5 | 924433-S | LOCK SET, FUEL CAP | 1 | ||||
| 03A | 924463 | LOCK ASSY. | 1 | FOR 425C | |||
| 04 | S96601 | SCREW, SPECIAL | 2 | ||||
| 06 | S70607 | SCREW, SOCKET HEAD M6X20 | 2 | ||||
| 07 | 923423 | BLANK KEY, LEFT CUT | 1 | ||||
| 08 | 923424 | BLANK KEY, RIGHT CUT | 1 | ||||
| 09 | 924913 | FUSE WIRING HARNESS | 1 | ||||
| 09-1 | 924425 | FUSE, 10A | 5 | ||||
| 09-2 | 924426 | FUSE, 15A | 3 | ||||
| 10 | GA510SR01 | CLAMP L150 | 2 | ||||
| 11 | GA510SR02 | CLAMP L200 | 3 | ||||
| 12 | 400535 | CLAMP L300 | 3 | ||||
