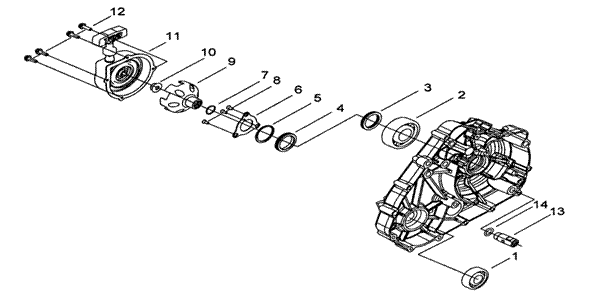

| 105 | L CRANK CASE COVER(1) | FBE-U | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924184 | BEARING φ20Xφ52X15 | 1 | ||||
| 02 | 924070 | BEARING φ25Xφ47X8 | 1 | ||||
| 03 | 924073 | OIL SEAL φ25Xφ36X6 | 1 | ||||
| 04 | 924072 | SPACER | 1 | ||||
| 05 | 924071 | O-RING φ2.5Xφ43.5 | 1 | ||||
| 06 | 924075 | RETAINER, CRANK CASE COVER | 1 | ||||
| 07 | 924074 | O-RING φ2.4Xφ14.8 | 1 | ||||
| 08 | S35607 | SCREW M6X10 | 3 | ||||
| 09 | 924143 | CUP, STARTER | 1 | ||||
| 10 | N10203 | NUT | 1 | ||||
| 11 | 924136 | STARTER ASSY., RECOIL | 1 | ||||
| 12 | S24604 | BOLT,FLANGE M6X12 | 4 | ||||
| 13 | 924154 | OIL PRESSURE VALVE | 1 | ||||
| 14 | W99823 | WASHER | 1 | ||||
