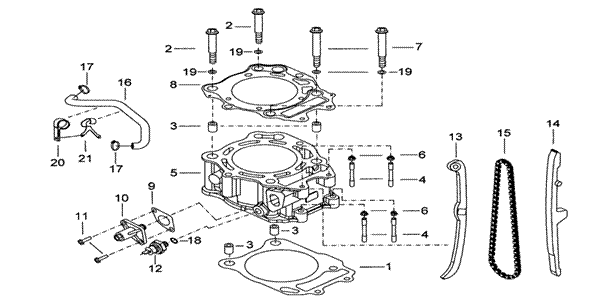

| 103 | CYLINDER | FBE-U | |||||
|
|
|||||||
| ITEM NO | PART NO | DESCRIPTION | Q'TY | AMEND | NOTE | ||
| 01 | 924011 | GASKET, CYLINDER 6X25 | 1 | ||||
| 02 | S20023 | STUD | 2 | ||||
| 03 | P40301 | PIN, DOWEL | 4 | ||||
| 04 | S95607 | STUD | 4 | ||||
| 05 | 924003 | CYLINDER | 1 | ||||
| 06 | GA504NT01 | NUT, FLANGE M6 | 4 | ||||
| 07 | S20027 | STUD | 2 | ||||
| 08 | 924012 | GASKET, CYLINDER HEAD M6 | 1 | ||||
| 09 | 924013 | GASKET | 1 | ||||
| 10 | 924014 | ADJUSTER ASSY., TENSIONER | 1 | ||||
| 11 | S24603 | BOLT, FLANGE M6x16 | 2 | ||||
| 12 | 925808 | OIL PRESSURE SENSOR | 1 | ||||
| 13 | 924038 | CAM CHAIN TENSIONER | 1 | ||||
| 14 | 924041 | CAM CHAIN GUIDE | 1 | ||||
| 15 | 924042 | TIMING CHAIN | 1 | ||||
| 16 | 924666 | WATER PIPE, WATER PUMP | 1 | ||||
| 17 | R66701 | CLIP | 2 | ||||
| 18 | W99013 | WASHER | 1 | ||||
| 19 | W99010 | WASHER ∮10.5X∮22X3.5t | 4 | ||||
| 20 | 924833 | CLIP " P " | 1 | ||||
| 21 | 925148 | CLIP " Y " | 1 | ||||
