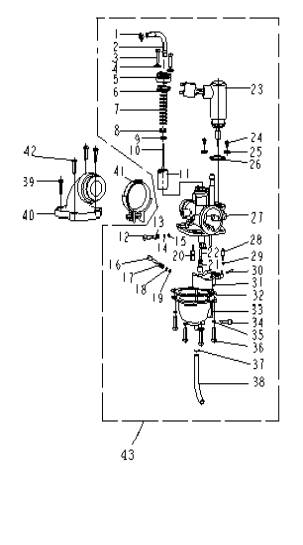

| CARBURETOR ASSY |
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
QTY |
|
|
| 1 |
32501B01F910 |
FIX SCREW |
1 |
|
| 2 |
32502B01F910 |
INSTRAINT PIPE |
1 |
|
| 3 |
32503B01F223 |
SCREW |
2 |
|
| 4 |
B07000000400 |
WASHER |
2 |
|
| 5 |
32505B01F000 |
CAP |
1 |
|
| 6 |
32506B01F000 |
GASKET |
1 |
|
| 7 |
32507B01F000 |
SPRING，return |
1 |
|
| 8 |
32508B01F000 |
CLIPMM,V shape |
1 |
|
| 9 |
B08030001500 |
CLIP |
1 |
|
| 10 |
32510B01F000 |
NEEDLE, jet |
1 |
|
| 11 |
32511B01F000 |
VALVE,PISTON |
1 |
|
| 12 |
32601B01F000 |
SCREW, idle speed |
1 |
|
| 13 |
32602B01F000 |
SPRING, speed screw |
1 |
|
| 14 |
32603B01F000 |
WASHER, speed screw |
1 |
|
| 15 |
32604B01F000 |
O RING, speed screw |
1 |
|
| 16 |
32605B01F000 |
SCREW, air |
1 |
|
| 17 |
32606B01F000 |
SPRING, air screw |
1 |
|
| 18 |
32607B01F000 |
WASHER, air screw |
1 |
|
| 19 |
32608B01F000 |
O RING, air screw |
1 |
|
| 20 |
32609B01F000 |
JET, idle |
1 |
|
| 21 |
32610B01F00A |
JET, main |
1 |
|
| 22 |
32611B01F000 |
JET, needle |
1 |
|
| 23 |
32612B01F000 |
THERMO ASSY |
1 |
|
| 24 |
B02040400823 |
SCREW |
2 |
|
| 25 |
B07000000400 |
WASHER |
2 |
|
| 26 |
32615B01F000 |
O RING |
1 |
|
| 27 |
32616B01F000 |
BODY, carburetor |
1 |
|
| 28 |
32617B01F000 |
VALVE, needle |
1 |
|
| 29 |
32618B01F000 |
HOOK |
1 |
|
| 30 |
32619B01F000 |
PIN, float |
1 |
|
| 31 |
32620B01F000 |
FLOAT |
1 |
|
| 32 |
32701B01F000 |
GASKET |
1 |
|
| 33 |
32702B01F000 |
CHAMBER, float |
1 |
|
| 34 |
32703B01F000 |
SCREW |
1 |
|
| 35 |
B07000000400 |
WADHER |
1 |
|
| 36 |
B02040401423 |
SCREW |
1 |
|
| 37 |
32706B01F000 |
CLIP |
1 |
|
| 38 |
32707B01F000 |
HOSE, drain |
1 |
|
| 39 |
B02050602064 |
SCREW |
3 |
|
| 40 |
32200G02F000 |
PIPE, intake |
1 |
|
| 41 |
32202G02F000 |
CLIP |
1 |
|
| 42 |
32206B01F000 |
SCREW |
1 |
|
| 43 |
32500B01F00B |
CARBURETOR ASSY |
1 |
|
|
|
|
|
|
|
|
|
|
|
