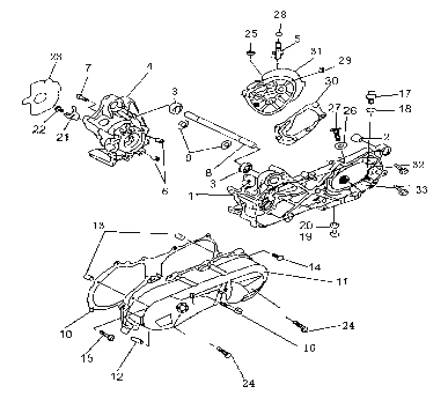

CRANKCASE ASSY
NO	PART NO	DESCRIPTION	QTY
1	26111B09F001	CRANKCASE,LH	1
2	26108G02F000	GROMMT	1
3	B12016600300	BEARING	2
4	26211B09F001	CRANKCASE,RH	1
5	26142G02F000	BRAKE SHOE ANCHOR  PIN ASSY	1
6	26123G02F000	DOWEL PIN	2
7	B01070603564	PAN HEAD SCREW	6
8	26109B09F000	AXLE,engine mount	1
9	B08010001700	CIRCLIP	2
10	14109B09F000	GASKET,L CRANKCASE	1
11	14108B09F000	L CRANKCASE COVER	1
12	26128G02F000	IDLE GEAR	1
13	26208G02F000	DOWEL PIN	2
14	B01070602564	PAN HEAD SCREW	8
15	B01070603564	PAN HEAD SCREW	2
16	B01070606564	PAN HEAD SCREW	1
17	26202G02F000	OIL PLUG	1
18	26102G02F000	O RING	1
19	26121G02F000	FLANGE BOLT	1
20	26124G02F000	PLATE WASHER	1
21	26214G02F910	OIL SEAL HOLDER	1
22	B01070601263	PAN HEAD SCREW	1
23	26216G02F000	GASKET	1
24	B02030601264	PAN HEAD SCREW	2
25	B04070812553	NUT	1
26	18114G02F000	PLATE WASHER	1
27	B02000601063	PAN HEAD SCREW	1
28	26143G02F000	O-RING	1
29	26123G02F000	DOWEL PIN	2
30	18100B09F000	MISSION CASE GASKET	1
31	18101B09F000	MISSION CASE	1
32	B01070805563	SCREW M8Χ55	2
33	B01070805063	SCREW M8Χ50	5
