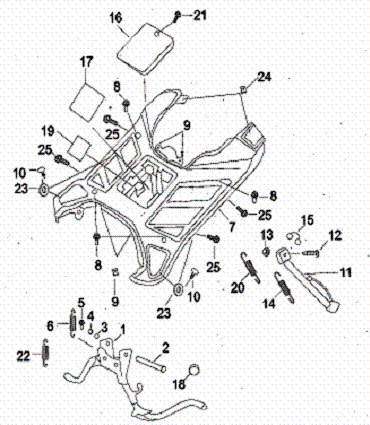

FOOTREST/STAND

NO

PART NO

DESCRIPTION

QTY

1

58520BM0T002

MAIN STAND COMP.

1

2

58590BMOT000

PIN（BLACK）

1

3

B190101000A0

O-RING 10X1.8

1

4

58508B0DT000

PLATE WASHER（BLACK）

1

5

63016B0DT000

SPLIT PIN（BLACK）

1

6

58502BM0T001

TENSION SPRING

1

7

65401BMBT000

FLOOR, BLACK

1

8

08011H60X000

BOLT（BLACK）

4

9

65801BMAT000

SPRING NUT 4（BLACK）

4

10

B05074001605

TAPPING SCREW 4X16

4

11

58700BM0T000

SIDE STAND COMP.

1

12

57005BODT000

BOLT, SIDE STAND MOUNTING

1

13

B04070800065

U NUT 8MM

1

14

57003BM0T001

TENSION SPRING

1

16

65813BMBT000

BATTERY COVER

1

17

65811BMBT000

BATTERY DAMPER I

1

18

58507BM0T000

CUSHION, MID STAND

1

19

65812BMBT000

BATTERY DAMPER I

1

20

57004BM0T001

TENSION SPRING

1

21

B05075001605

TAPPING SCREW 5X16

1

22

58512BM0T001

TENSION SPRING

1

23

B07030000505

WASHER

4

24

65802BMAT000

SPRING NUT 5（BLACK）

2

25

B01090601265

BOLT 6X12

4
