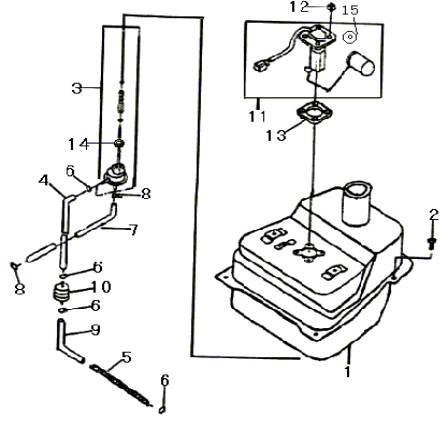

| FUEL TANK |
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
QTY |
|
|
| 1 |
50100BMBT001 |
FUEL TANK COMP. |
1 |
|
| 2 |
B01090601665 |
FLANGE BOLT 6X16 |
4 |
|
| 3 |
50300BM0T000 |
FUEL COCK ASSY. |
1 |
|
| 4 |
50301BM0T000 |
FUEL HOSE, 1
(4.5X8.5) |
1 |
|
| 5 |
50316BMBT000 |
SPRING |
1 |
|
| 6 |
50307BM0T000 |
CLIP 8mm |
4 |
|
| 7 |
50302BM0T000 |
VACUUM HOSE, 1 (4X8) |
1 |
|
| 8 |
50306BM0T000 |
CLIP 7mm |
2 |
|
| 9 |
50303BM0T000 |
FUEL HOSE, 2
(4.5X8.5) |
1 |
|
| 10 |
50340BMAT000 |
FUEL FILTER ASSY. |
1 |
|
| 11 |
50800BMBT000 |
SENDER UNIT |
1 |
|
| 12 |
50801BM0T000 |
BOLT 5X14 |
4 |
|
| 13 |
50004BMBT000 |
SENDER UNIT GASKET |
1 |
|
| 14 |
50312J0ET000 |
SEAL RING |
1 |
|
| 15 |
B07020000505 |
WASHER 5 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
