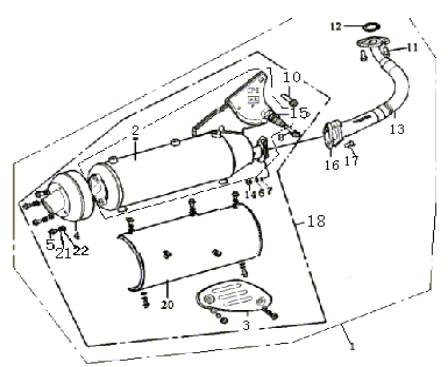

| MUFFLER |
|
|
|
|
|
|
|
|
| NO |
PART NO |
DESCRIPTION |
QTY |
|
|
| 1 |
47000BM0T004 |
MUFFLER ASSY. |
1 |
|
| 2 |
47200BM0T001 |
MUFFLER JOINTING
COMP. |
1 |
|
| 3 |
47023BM0T000 |
COVER, DECORATION |
1 |
|
| 4 |
47780J4AT000 |
COVER COMP., RR. |
1 |
|
| 5 |
B02000601064 |
BOLT 6X10MM |
10 |
|
| 6 |
B07000000805 |
SPRING WASHER
8(BLACK) |
2 |
|
| 7 |
B07030000805 |
WASHER 8(BLACK) |
2 |
|
| 8 |
B01090803565 |
BOLT 8X35MM(BLACK) |
1 |
|
| 10 |
B01090802065 |
BOLT 8x20(BLACK) |
1 |
|
| 11 |
B01090601665 |
BOLT 6x16(BLACK) |
2 |
|
| 12 |
47800B0DT000 |
GROMMET, EXHAUST PIPE |
1 |
|
| 13 |
47500BM0T000 |
EXHAUST PIPE COMP. |
1 |
|
| 14 |
B04000800065 |
NUT M8(BLACK) |
2 |
|
| 15 |
47740B0ET000 |
WASHER ASSY., FIXING |
1 |
|
| 16 |
47121BM0T000 |
GASKET, FLANGE |
1 |
|
| 17 |
B02050803065 |
SCREW 8X30MM(BLACK) |
2 |
|
| 18 |
48100BM0T000 |
MUFFLER COMP. |
1 |
|
| 20 |
47760BM0T000 |
COVER ASSY.,
DECORATING |
1 |
|
| 21 |
B070000000604 |
WASHER
6 |
10 |
|
| 22 |
B070300000604 |
WASHER
6 |
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
