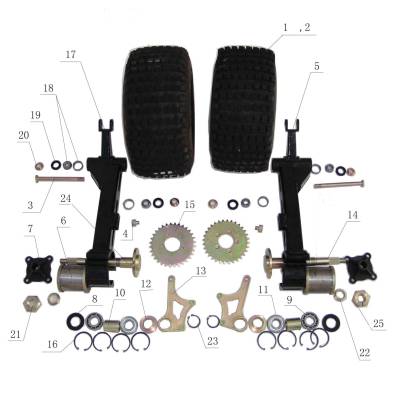

| REAR FORK
ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| No. |
Code |
Description |
Qty |
Price |
|
|
|
| 1 |
C-826-2 |
RR.TIRE AT18X9.5-8 |
2 |
$ 23.00 |
|
|
| 1A |
C-826-2 |
RR.TIRE AT22X10-10 |
2 |
$ 26.00 |
|
|
| 2 |
CY150SR-Ⅰ-1601001 |
RR RIM |
2 |
$ 11.00 |
|
|
| 2A |
CY150SR-Ⅰ-1601001A |
RR RIM |
2 |
$ 11.00 |
|
|
| 3 |
CY150SR-Ⅰ-1600001 |
BOLT,RR.SWING ARM |
2 |
$ 3.60 |
|
|
| 4 |
CY150SR-Ⅰ-1600002 |
SLIDING NUT |
2 |
$ 1.20 |
|
|
| 5 |
CY150SR-Ⅰ-1604000 |
RR.SWING ARM ASSY.RH. |
1 |
$ 20.00 |
|
|
| 5A |
CY150SR-Ⅰ-1600004 |
RR.SWING ARM .RH. |
1 |
$ 35.00 |
|
|
| 6 |
CY150SR-Ⅰ-1603102 |
ECCENTRIC BEARING HOUSING |
2 |
$ 9.50 |
|
|
| 6A |
CY150SR-Ⅰ-1603003 |
ECCENTRIC BEARING HOUSING |
2 |
$ 12.00 |
|
|
| 7 |
CY150SR-Ⅰ-1601002 |
RR.HUB |
2 |
$ 8.50 |
|
|
| 7A |
CY150SR-Ⅰ-1600006 |
RR.HUB( L ) |
2 |
$ 9.50 |
|
|
| 8 |
GB13871-1992 |
OIL SEAL FB38X62X8 |
2 |
$ 1.80 |
|
|
| 9 |
GB/T276-94 |
BEARING 6206 |
2 |
$ 1.70 |
|
|
| 10 |
CY150SR-Ⅰ-1603004 |
COLLAR,RR.AXLE |
2 |
$ 1.10 |
|
|
| 11 |
GB/T276-94 |
BEARING 6206-Z |
2 |
$ 1.90 |
|
|
| 12 |
CY150SR-Ⅰ-1603002 |
BUSHING,RR.BRAKE BRACKET |
2 |
$ 1.20 |
|
|
| 13 |
CY150SR-Ⅰ-1603001 |
RR.BRAKE BRACKERT |
2 |
$ 3.70 |
|
|
| 14 |
CY150SR-Ⅰ-1602101 |
RR.AXLE SHAFT. RIGHT |
1 |
$ 23.00 |
|
|
| 14A |
CY150SR-Ⅰ-1602101A |
RR.AXLE SHAFT. RIGHT |
1 |
$ 23.00 |
|
|
| 15 |
CY150SR-Ⅰ-1602001 |
RR.SPROCKET |
2 |
$
6.00 |
|
| 16 |
GB/T893.1-1-1986 |
CIR CLIP FOR HOLE 62 |
8 |
$
1.20 |
|
| 17 |
CY150SR-Ⅰ-1605000 |
RR.SWING ARM ASSY LH |
1 |
$
20.00 |
|
| 17A |
CY150SR-Ⅰ-1600005 |
RR.SWING ARM LH |
1 |
$
35.00 |
|
| 18 |
GB/T297-1994 |
TAPERED ROLLER
BEARING 30302 |
4 |
$
1.50 |
|
| 19 |
GB13871-1992 |
OIL SEAL FB25X40X7 |
4 |
$
1.20 |
|
| 20 |
CY150SR-Ⅰ-1600003 |
SHOULDER WASHER |
4 |
$
0.60 |
|
| 21 |
CY150SR-Ⅰ-1600008 |
CLAMPING NUT LH. |
1 |
$
2.43 |
|
| 22 |
CY150SR-Ⅰ-1603005 |
SHOULDER WASHER |
2 |
$
0.80 |
|
| 23 |
GB/T894.1-1986 |
CIRCLIP FOR SHAFT 40 |
2 |
$
0.60 |
|
| 24 |
CY150SR-Ⅰ-1602102 |
RR.AXLE SHAFT LEFT |
1 |
$
23.00 |
|
| 24A |
CY150SR-Ⅰ-1602102A |
RR.AXLE SHAFT LEFT |
1 |
$
23.00 |
|
| 25 |
CY150SR-Ⅰ-1600007 |
CLAMPING NUT RH. |
1 |
$
2.43 |
|
| 26 |
CY150SR-Ⅰ-1600009 |
ANTI-REVOLUTION PLATE |
2 |
$
1.20 |
|
| 27 |
GB/T894.1-1986 |
CIRCLIP FOR SHAFT 90 |
2 |
$
1.50 |
|
| 28 |
CY150SR-Ⅰ-1500007 |
BOLT,HUB |
8 |
$
0.30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
