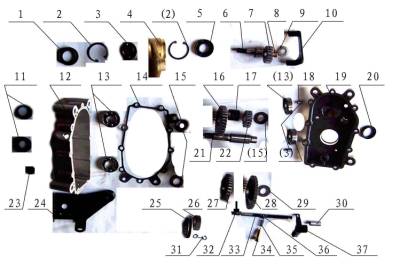

| REVERSE GEARBOX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| No. |
Code |
Description |
Qty |
Price |
|
|
|
| 1 |
GB13871-1992 |
OIL SEAL FB25X47X7 |
1 |
$
1.20 |
|
| 2 |
GB/T893.1-1986 |
CIRCLP47 |
2 |
$
0.60 |
|
| 3 |
GB/T 276-94 |
BEARING6005 |
2 |
$
1.20 |
|
| 4 |
CY150SR-Ⅰ-1105001 |
CONNECTING PLATE |
1 |
$
5.50 |
|
| 5 |
GB13871-1992 |
OIL SEAL FB30X47X7 |
1 |
$
1.20 |
|
| 6 |
CY150SR-Ⅰ-1101026 |
DRIVE GEAR SHAFT |
1 |
$
3.00 |
|
| 7 |
CY150SR-Ⅰ-1101024 |
DRIVE GEAR |
1 |
$
2.50 |
|
| 8 |
CY150SR-Ⅰ-1101025 |
COPPER SLEEVE,DRIVE
GEAR |
1 |
$
0.80 |
|
| 9 |
CY150SR-Ⅰ-1101023 |
WASHER |
1 |
$
0.10 |
|
| 10 |
CY150SR-1-1101016 |
MCUNING BRACKET,DRTVE
GEAR |
1 |
$
1.20 |
|
| 11 |
GB13871-1992 |
OIL SEAL FB30X42X7 |
2 |
$
1.20 |
|
| 12 |
CY150SR-Ⅰ-1101015 |
REVERSE GEAR BOS |
1 |
$
24.30 |
|
| 13 |
GB/T 276-94 |
BEARING 6204 |
3 |
$
1.20 |
|
| 14 |
CY150SR-Ⅰ-1101027 |
GEAR BOX BASE |
1 |
$
0.80 |
|
| 15 |
CY150SR-Ⅰ-1101011 |
WASHER |
3 |
$
0.10 |
|
| 16 |
CY150SR-Ⅰ-1101001 |
DRIVE
GEAR（Ⅰ） |
1 |
$
6.00 |
|
| 17 |
CY150SR-Ⅰ-1101002 |
SHAFT SLEEVE |
1 |
$
0.50 |
|
| 18 |
CY150SR- 1 -1101017 |
DOWEL PIN 8X14 |
2 |
$
0.10 |
|
| 19 |
CY150SR-Ⅰ-1101021 |
COVER,REVERSE GEAR
BOX |
1 |
$
12.15 |
|
| 20 |
GB13871-1992 |
OIL SEALFB25X42X7 |
1 |
$
1.20 |
|
| 21 |
CY150SR-Ⅰ-1101004 |
INPUT SHAFT OF THE
GEARBOX |
1 |
$
6.80 |
|
| 22 |
CY150SR-Ⅰ-1101003 |
DRIVE
GEAR（Ⅱ） |
1 |
$
3.64 |
|
| 23 |
GB13871-1992 |
OIL SEAL FB10X22X7 |
1 |
$
1.20 |
|
| 24 |
CY150SR-Ⅰ-1100021 |
MOUNTING BRACKET |
1 |
$
3.64 |
|
| 25 |
CY150SR-Ⅰ-1101007 |
GEAR SHIFT BASE |
1 |
$
3.64 |
|
| 26 |
CY150SR-Ⅰ-1101006 |
SIDE GEAR COVER |
1 |
$
3.64 |
|
| 27 |
CY150SR-Ⅰ-1101008 |
DRIVEN
GEAR（Ⅱ） |
1 |
$
3.64 |
|
| 28 |
CY150SR-Ⅰ-1101005 |
DRIVEN
GEAR（Ⅰ） |
1 |
$
3.64 |
|
| 29 |
CY150SR-Ⅰ-1101022 |
WASHER |
1 |
$
0.10 |
|
| 30 |
CY150SR
-Ⅰ-1101013 |
BUSHING,ROCK |
1 |
$
0.10 |
|
| 31 |
GB/T894.1-1986 |
CIRCLIP FOR SHAFT 10 |
2 |
$
0.20 |
|
| 32 |
CY150SR-Ⅰ-1101009 |
GEAR SHIFTING FORK |
1 |
$
3.03 |
|
| 33 |
CY150SR-Ⅰ-1101018 |
GEAR SHIFTER SHAFT |
1 |
$
3.70 |
|
| 34 |
CY150SR-Ⅰ-1101012 |
GEAR SHIFTER SHAFT
LOCKING BOLT |
1 |
$
0.20 |
|
| 35 |
CY150SR-Ⅰ-1101014 |
SPRING |
1 |
$
0.30 |
|
| 36 |
GB308-89 |
STEEL BALL Ф8 |
1 |
$
0.15 |
|
| 37 |
CY150SR-Ⅰ-1101019 |
ROCKER |
1 |
$
1.80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
