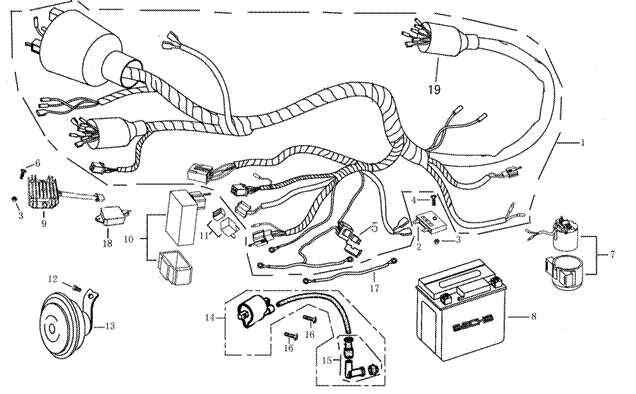

| F24 - Wiring Harness | ||||||
|
|
||||||
| ITEM | PART NO. | DESCRIPTION | QTY | |||
| 1 | 32100-FY20-000 | Wiring Harness | 1 | |||
| 2 | 38500-FY-000 | Diode | 1 | |||
| 3 | GB/T6187.1-M5-A2G | Flange Nut M5 | 3 | |||
| 4 | GB/T818-M5*20-A3H | Screw M5*20 | 1 | |||
| 5 | 31533-FY20-000 | Fuse(15A) | 1 | |||
| 6 | GB/T819.1-M5*25-A2G | Screw M5*25 | 2 | |||
| 7 | 35800-FYBQ-000 | Start Relay | 1 | |||
| 8 | 31500-FY20-000 | Battery Assy(YTX7L-BS,ENGLISH) | 1 | |||
| 9 | 31600-FY20-000 | Rectifier | 1 | |||
| 10 | 30400-FY20-000 | C.D.I Comp SMDC | 1 | |||
| 11 | 38301-FYBQ-000 | Flasher Comp | 1 | |||
| 12 | GB/T9074.17-M6*12-A2G | Combination Bolt M6×12 | 1 | |||
| 13 | 38100-FY20-000 | Horn(E-mark) | 1 | |||
| 14 | 30510-FY20-000 | Ignition Coil Assy | 1 | |||
| 15 | 30513-FYG2-000 | Cap,Spark Plug | 1 | |||
| 16 | GB/T9074.4-M5*16-A2G | Pan Bolt M5×16 | 2 | |||
| 17 | 32412-FYBQ-000 | Cathode Cable | 1 | |||
| 19 | 32181-FYBQ-000 | rubber cover(φ25) | 1 | |||
