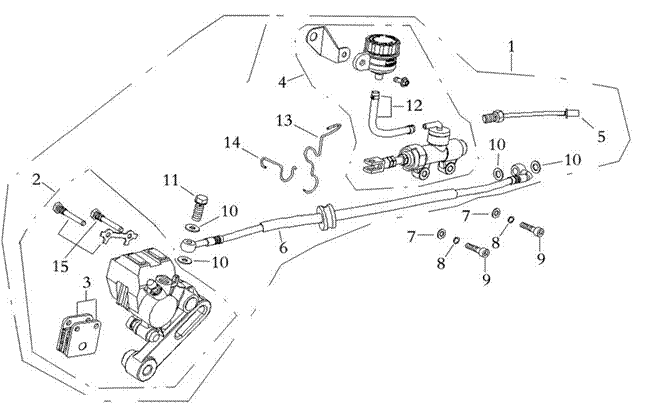

F19 - Rear Brake Assy
后碟刹OK
ITEM PART NO. DESCRIPTION QTY
1 43200-FY20-10R Rear Brake Assy (Red) 1
1 43200-FY20-1YGB Rear Brake Assy (Dark Black silver) 1
2 43210-FY20-00R Rear Brake Caliper Assy (Red) 1
2 43210-FY20-YGB Rear Brake Caliper Assy (Dark Black silver) 1
3 43235-FYBQ-300 Rear Brake Pad (Set) 1
4 43230-FYBQ-30R Rear Brake Pump Assy (Red) 1
4 43230-FYBQ-3YGB Rear Brake Pump Assy (Dark Black silver) 1
5 35360-FYBQ-300 Rear Brake Switch 1
6 43260-FYBQ-300 Brake Hose, Rear Brake 1
7 GB/T95-6-A2G Washer 6 2
8 GB/T93-6-A2G Spring Washer 6 2
9 90117-06025-10C Screw M625 2
10 46016-FYBQ-000 Washer 4
11 46015-FYBQ-000 Hollow Bolt 1
12 43231-FY20-000 Brake Tube Comp(with clip hoop) 1
13 43232-FY20-000 Brake Hose Clamp(big) 1
14 43233-FY20-000 Brake Hose Clamp(small) 1
15 43270-FY20-000 Fixing Bolt Comp, Rear Brake Pad 1
