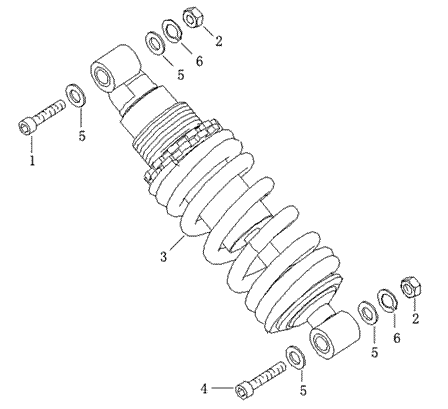

| F16 - Rear Shock Absorber Assy | ||||
|
|
||||
| ITEM | PART NO. | DESCRIPTION | QTY | |
| 1 | 90117-10045-X10C | Socket Bolt M10*45*1.25 | 1 | |
| 2 | GB/T6171-M10*1.25-A2G | Hexagon Nut M10*1.25 | 2 | |
| 3 | 52400-FY20-00R | Rear Shock Absorber Assy (Red, 235) | 1 | |
| 3 | 52400-FY20-YGB | Rear Shock Absorber Assy (Dark Black, 235) | 1 | |
| 4 | 90117-10050-X10C | Bolt M10*50*1.25 | 1 | |
| 5 | GB/T95-10-A2G | Washer Ø10 | 4 | |
| 6 | GB/T93-10-A2G | Spring Washer Ø10 | 2 | |
