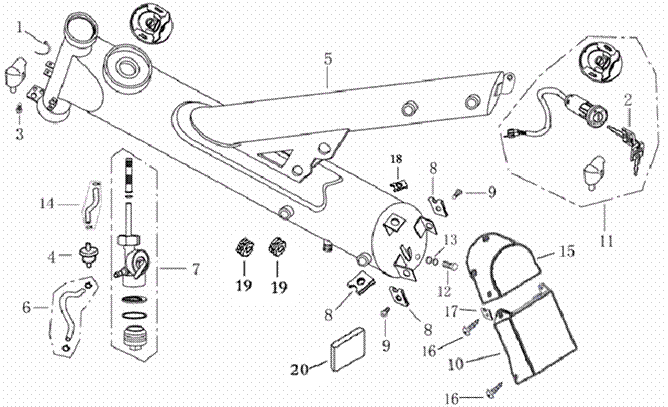

| F14 - Frame Assy |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
91165-FYBQ-000 |
Binder |
1 |
|
| 2 |
35001-FYBQ-000 |
Key |
1 |
|
| 3 |
GB/T819.1-M5*14-A2G |
Screw M5*14 |
2 |
|
| 4 |
16910-FYT3A-000 |
Fuel Filter |
1 |
|
| 5 |
V011000-FY20-1GR02 |
Frame (GREY,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-3GR02 |
Frame (GREY,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-1Y01 |
Frame (Yellow,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-3Y01 |
Frame (Yellow,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-1B03 |
Frame (Black
Silver,screw thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-3B03 |
Frame (Black
Silver,screw thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-1A01 |
Frame (Silver,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-3A01 |
Frame (Silver,screw
thread4-M10*20) |
1 |
|
| 5 |
V011000-FY20-1R07 |
Frame (RED,screw
thread4-M10*20) |
1 |
|
| 6 |
V063510-FYJT18-0000 |
Gasoline Hose |
1 |
|
| 7 |
16950-FY20-000 |
Fuel Tap |
1 |
|
| 8 |
90220-06000-00C |
Clip Nut M6 |
3 |
|
| 9 |
90111-06014-C |
Screw M6×14 |
2 |
|
| 10 |
31512-FY20-000 |
Battery Cover,
Lower |
1 |
|
| 10 |
35024-FYJ3-000 |
Bolt cap, tank cover |
1 |
|
| 11 |
35000-FY20-00R |
Lock Set (Red) |
1 |
|
| 11 |
35000-FY20-YGB |
Lock Set (Dark Black
silver) |
1 |
|
| 12 |
GB/T5783-M6*8-A2G |
Screw M6×8 |
2 |
|
| 13 |
16951-FYBQ-000 |
Seal Washer |
4 |
|
| 14 |
91100-FY20-190 |
Gasoline Hose(bend) |
1 |
|
| 15 |
31511-FY20-000 |
Battery Cover,
Upper |
1 |
|
| 16 |
GB/T845-ST4.8*16-A3H |
Tapping Screw 4.8*16 |
4 |
|
| 17 |
90183-05807-00 |
Clip Nut for Tapping
Screws |
4 |
|
| 18 |
90220-06000-K |
Clip Nut M6 |
1 |
|
| 19 |
84703-FYT3A-000 |
Rubber |
2 |
|
| 20 |
2GL-F139X-0000 |
Damper Rubber |
1 |
|
|
|
|
|
|
|
