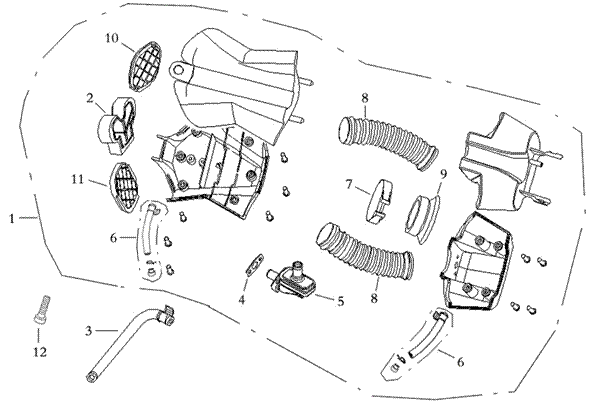

| F10 - Air Filter Assy |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
17200-FY20-000 |
Air Filter Assy |
1 |
|
| 2 |
V241201-FYIJ-0000 |
Filter Element Comp |
1 |
|
| 3 |
18542-FY20-000 |
Tube with Clip |
1 |
|
| 4 |
18543-FY20-000 |
Plumbago Washer |
1 |
|
| 5 |
18541-FY20-000 |
Diaphragm Valve |
1 |
|
| 6 |
V241021-FY20-0000 |
Leakage Tube Comp
(long) |
2 |
|
| 7 |
V240110-FY20-0000 |
Hose Clamp |
1 |
|
| 8 |
17261-FY20-000 |
Connecting Tube |
2 |
|
| 9 |
V241336-FY20-0000 |
Carburetor Socket |
1 |
|
| 10 |
17266-FY20-000 |
Right Air Intake
Fence |
1 |
|
| 11 |
17267-FY20-000 |
Left Air Intake Fence |
1 |
|
| 12 |
90117-06022-10C |
Screw M6×22 |
1 |
|
|
|
|
|
|
|
|
