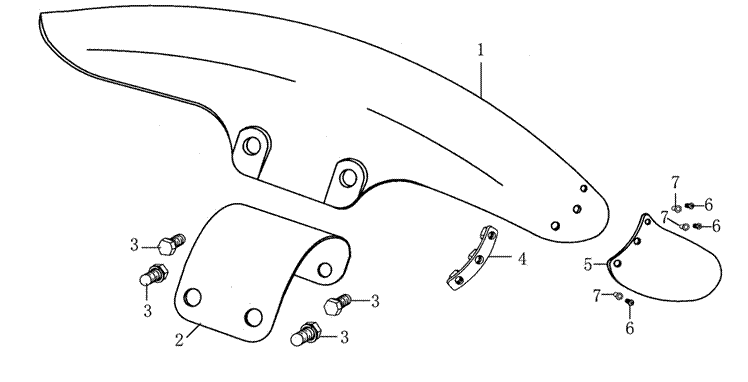

| F08 - Front Fender | |||||||||
|
|
|||||||||
| 1 | 61100-FYBQ-0GR | Front Fender (GREY) | QTY | ||||||
| 1 | 61100-FYBQ-00Y | Front Fender (Yellow) | 1 | ||||||
| 1 | V022610-FY20-0R07 | Front Fender (RED) | 1 | ||||||
| 1 | 61100-FYBQ-YGB | Front Fender (Dark Black) | 1 | ||||||
| 1 | 61100-FYBQ-00A | Front Fender (Silver) | 1 | ||||||
| 2 | 61101-FYBQ-000 | Front Fender Bracket | 1 | ||||||
| 3 | GB/T5783-M8*12-A2G | Bolt M8*12 | 4 | ||||||
| 4 | 61138-FY10-000 | Front Splash Guard Bracket | 1 | ||||||
| 5 | 61135-FYBQ-000 | Front Splash Guard | 1 | ||||||
| 6 | GB/T818-M5*10-A2F | Crosshead Screw M5*10 | 3 | ||||||
| 7 | 61122-FY-000 | Bush | 3 | ||||||
