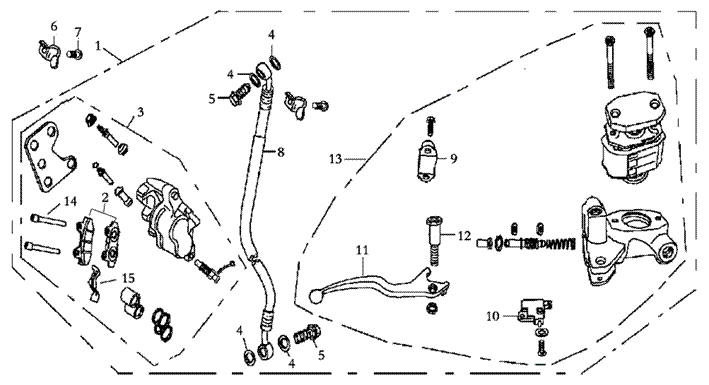

| F07 - Front Disc Brake Assy |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
46000-FY20-10R |
Front Disc Brake Assy
(Red) |
1 |
|
| 1 |
46000-FY20-1YGB |
Front Disc Brake Assy
(Dark Black) |
|
|
| 2 |
46630-FYBQ-000 |
Disc Brake Pad Comp |
1 |
|
| 3 |
46600-FYBQ-30R |
Front Brake Caliper
Assy (Red) |
1 |
|
| 3 |
46600-FYBQ-3YGB |
Front Brake Caliper
Assy (Black) |
1 |
|
| 4 |
46016-FYBQ-000 |
Gasket |
4 |
|
| 5 |
46015-FYBQ-000 |
Hollow-Core Screw |
2 |
|
| 6 |
46125-FYBQ-000 |
Clamp, Disc Brake
Tube |
1 |
|
| 7 |
GB/T9074.17-M6*12-A2G |
Screw M6*12 |
1 |
|
| 8 |
46300-FY20-000 |
Disc Brake Tube |
1 |
|
| 9 |
46127-FYBQ-000 |
Fixing Block |
1 |
|
| 10 |
46210-FYBQ-000 |
Front Brake Switch
Assy |
1 |
|
| 11 |
46128-FYBQ-000 |
Front Brake Lever |
1 |
|
| 12 |
46126-FYBQ-000 |
Bolt, Front Brake
Lever |
1 |
|
| 13 |
46100-FYBQ-000 |
Master Cylinder, Disc
Brake |
1 |
|
| 14 |
46629-FYBQ-000 |
Fixing Bolt, Brake
Pads |
2 |
|
| 15 |
46636-FYBQ-000 |
Stretch Clamp |
1 |
|
|
|
|
|
|
|
