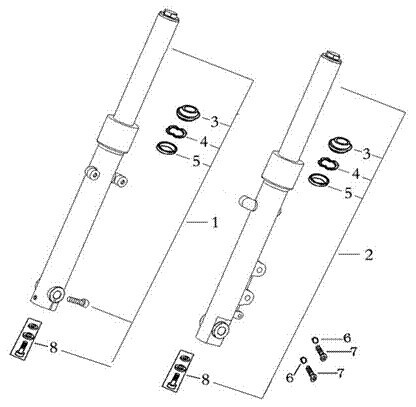

| F06 - Front Shock Absorber Assy | ||||
|
|
||||
| ITEM | PART NO. | DESCRIPTION | QTY | |
| 1 | 51400-FY20-000 | Front Shock Absorber Assy (Right) | 1 | |
| 2 | 51500-FYBQ-000 | Front Shock Absorber Assy (Left) | 1 | |
| 3 | 51425-FYBQ-000 | Dust Cover, Shock Absorber | 2 | |
| 4 | 90601-FYBQ-000 | Lock Ring | 2 | |
| 5 | 51490-FYBQ-000 | Oil Seal Comp, Front Shock Absorber | 2 | |
| 6 | GB/T93-10-A2G | Spring Washer Ø10 | 2 | |
| 7 | 90117-10030-X10C | Bolt M10*30*1.25 | 2 | |
| 8 | 51495-FYBQ-000 | Connecting Bolt Set | 2 | |
