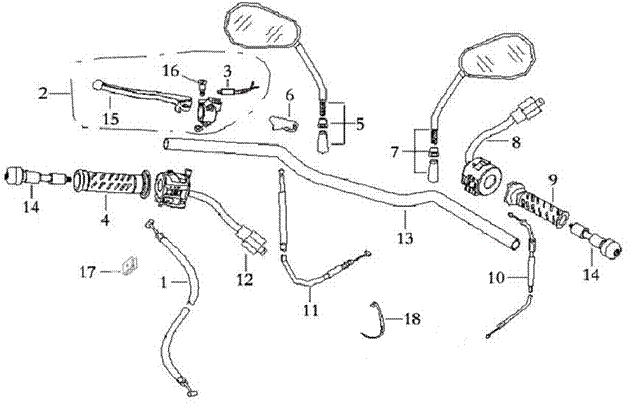

| F03 - Steering Bar |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
32870-FY20-000 |
Choke Cable Comp |
1 |
|
| 2 |
53171-FYIJ-000 |
Clutch Lever
Assy |
1 |
|
| 3 |
35210-FY-000 |
Clutch Switch |
1 |
|
| 4 |
53166-FYH-000 |
Rubber Grip, Left
Handlebar |
1 |
|
| 5 |
V212100-FYBQ-0000 |
Rearview Mirror Assy
(Lh/Black) |
1 |
|
| 6 |
53173-FY5-000 |
Rubber, Left Clutch
Handle |
1 |
|
| 7 |
V212200-FYBQ-0000 |
Rearview Mirror Assy
(Rh/Black) |
1 |
|
| 8 |
35200-FY20-100 |
Handlebar Switch Assy
(Rh) |
1 |
|
| 9 |
53140-FYH-000 |
Throttle Turning Grip
Comp |
1 |
|
| 10 |
17910-FY20-000 |
Throttle Cable |
1 |
|
| 11 |
22870-FY20-000 |
Clutch Cable Comp |
1 |
|
| 12 |
35100-FY20-000 |
Handle Bar Switch
Assy( Lh) |
1 |
|
| 13 |
53101-FY20-000 |
Steering Bar (Chrome
Plated) |
1 |
|
| 14 |
53120-FYH-000 |
Balance Block Comp |
2 |
|
| 15 |
53171-FYIJ-001 |
Clutch Lever |
1 |
|
| 16 |
53171-FYIJ-002 |
Bolt, Handle Bar
Switch Assy (Lh) |
1 |
|
| 17 |
37252-FYIJ-000 |
The line clip |
3 |
|
| 18 |
91165-FYH-000 |
Binder |
2 |
|
|
|
|
|
|
|
|
