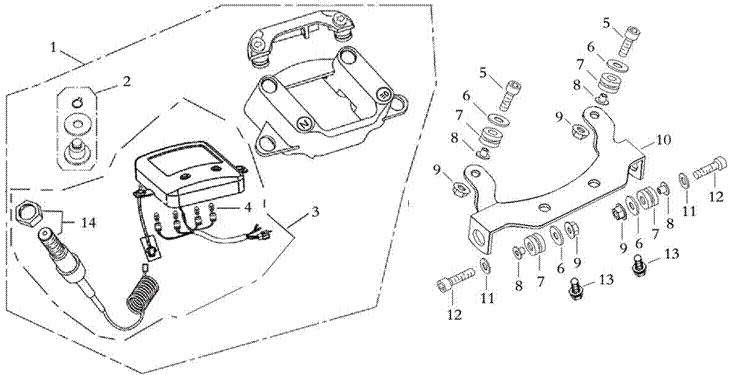

F02 - Speedometer Assy
仪表
ITEM PART NO. DESCRIPTION QTY
1 37200-FY20-000 Speedometer Assy 1
2 37220-FYBQ-200 Magnet Comp 1
3 37270-FY20-000 Electronic Speedometer 1
4 37241-FYBQ-000 Bulb 4
5 90117-06022-10C Socket Screw M6*22 2
6 GB/T96.1-6-A2G Washer 6 4
7 18293-FYBQ-000 Rubber Ring 4
8 90304-FY8-000 Bush 6 4
9 GB/T6187.1-M6-A2G Lock Nut M6 4
10 37210-FY20-000 Mounting Bracket, Speedometer 1
11 GB/T95-6-A2G Washer 6 2
12 90117-06025-10C Screw M6*25 2
13 GB/T9074.17-M8*16-A2G Bolt with Washer M8*16 2
14 V195030-FY20-0000 Sensor with Cable, Speedometer 1
