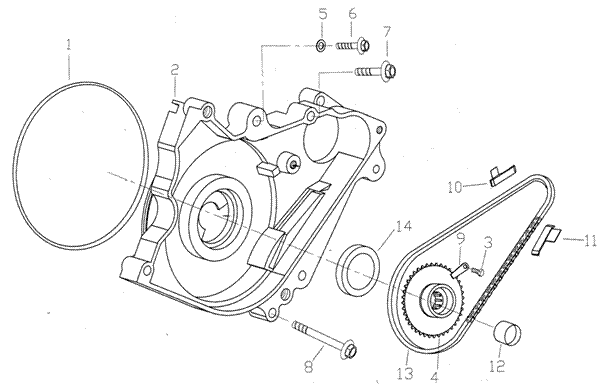

| E15 - STARTING CLUTCH | ||||||
|
|
||||||
| ITEM | PART NO. | DESCRIPTION | QTY | |||
| 1 | 90701-10700-020 | O-ring 107×2 | 1 | |||
| 2 | 11251-FYIF3-000 | Board | 1 | |||
| 3 | GB/T5783-M6*8-A2G | Bolt M6×8 | 1 | |||
| 4 | 28114-FYIF3-000 | Clutch sprocket weldment (44Z) | 1 | |||
| 5 | 28105-FYIF3-000 | Aluminum washer | 1 | |||
| 6 | GB/T16674.1-M6*35-F5J | Bolt M6×35 | 1 | |||
| 7 | GB/T16674.1-M6*105-F5J | Bolt M6×105 | 1 | |||
| 8 | 90103-06025-00F5J | Bolt M6×25 | 1 | |||
| 9 | E12220B-FYIF3-0000 | Set plate,startsprocket | 1 | |||
| 10 | E12220C-FYIF3-0000 | Tensioning plate | 1 | |||
| 11 | E12220A-FYIF3-0000 | Guide | 1 | |||
| 12 | 90801-19030-005 | Oil seal 18.9×30×5 | 1 | |||
| 13 | E110001-FYIF3-0000 | Start chain 64T | 1 | |||
| 14 | 90801-03042-004 | Oil seal 30×42×4.5 | 1 | |||
