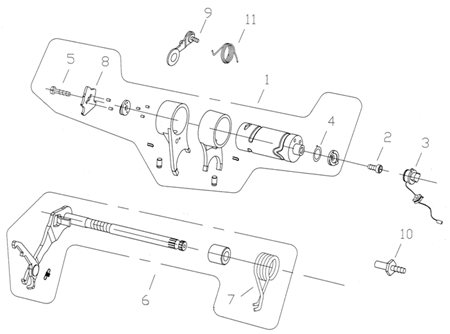

| E14 - GEARSHIFT DRUM | |||||
|
|
|||||
| ITEM | PART NO. | DESCRIPTION | QTY | ||
| 1 | 23701-FYIF3-000 | Gearshift Drum Assy | 1 | ||
| 2 | GB/T5783-M6*12-F5J | Screw M6×12 | 1 | ||
| 3 | E094001-FYFF-0000 | connecting wire comp,gear put off switch | 1 | ||
| 4 | 31322-FYIF3-000 | Contacts, Neutral Indicator | 1 | ||
| 5 | GB/T5783-M6*12-A2F | Screw M6×12 | 1 | ||
| 6 | 23712-FYIF3-000 | Gearshift Shaft Assy | 1 | ||
| 7 | 23716-FYIF3-000 | Torsion Spring | 1 | ||
| 8 | 23711-FYIF3-000 | Wheel, Gearshift | 1 | ||
| 9 | 23730-FYIF3-000 | Position Plate Comp | 1 | ||
| 10 | 23723-FYIF3-000 | Stop Screw | 1 | ||
| 11 | 23731-FYIF3-000 | Spring, Position Plate | 1 | ||
