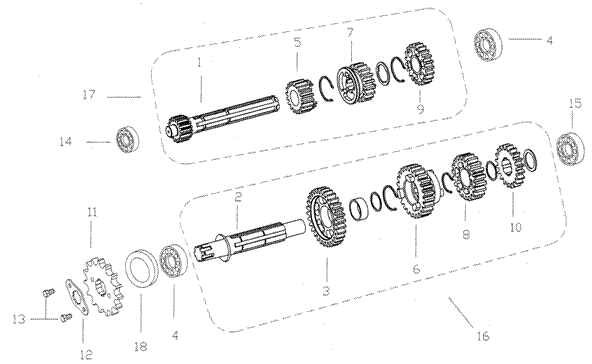

| E13 - TRANSMISSION SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
23501-FYIF3-000 |
Main shaft |
1 |
|
| 2 |
23601-FYIF3-000 |
Counter Shaft |
1 |
|
| 3 |
23611-FYIF3-000 |
1st gear,counter
shaft |
1 |
|
| 4 |
6203/P5-GB/T276-94 |
Bearing 6203 |
2 |
|
| 5 |
23509-FYIF3-000 |
2nd gear,main shaft |
1 |
|
| 6 |
23603-FYIF3-000 |
2nd gear,counter
shaft |
1 |
|
| 7 |
23504-FYIF3-000 |
3rd gear,main shaft |
1 |
|
| 8 |
23608-FYIF3-000 |
3rd gear,counter
shaft |
1 |
|
| 9 |
23505-FYIF3-000 |
4th gear,main shaft |
1 |
|
| 10 |
23605-FYIF3-000 |
4th gear,counter
shaft |
1 |
|
| 11 |
23682-FYIF3-000 |
Output sprocket(16Z) |
1 |
|
| 12 |
E08120E-FYIF3-0000 |
Fixing plate |
1 |
|
| 13 |
GB/T5783-M6*8-A2G |
Bolt M6×8 |
2 |
|
| 14 |
6001/P6-GB/T276-94 |
Bearing 6001 |
1 |
|
| 15 |
6201/C3-GB/T276-94 |
Bearing 6201 |
1 |
|
| 16 |
23600-FYIF3-100 |
Counter shaft Assy |
1 |
|
| 17 |
23500-FYIF3-100 |
Main shaft Assy |
1 |
|
| 18 |
90801-17029-005 |
Oil seal 17×29×5 |
1 |
|
|
|
|
|
|
|
|
