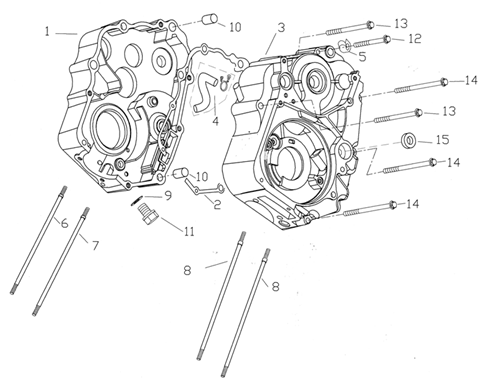

| E10 - CRANKCASE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
11110-FYIF3-000 |
Crankcase,RH |
1 |
|
| 2 |
11191-FYIF3-000 |
Gasket,crankcase |
1 |
|
| 3 |
11210-FYIF3-000 |
Crankcase,LH |
1 |
|
| 4 |
11211-FYIF3-000 |
Vent pipe |
1 |
|
| 5 |
11421-FYGF-000 |
|
1 |
|
| 6 |
90131-07204-0000X |
stub
boltM7*204(black) |
1 |
|
| 7 |
90131-07204-00A2G |
stub
boltM7*204(colour) |
1 |
|
| 8 |
90131-07212-00A2G |
stub
boltM7*212(colour) |
2 |
|
| 9 |
90301-12020-15AL0 |
Washer |
1 |
|
| 10 |
90411-10014-000 |
Dowel pin 10×14 |
2 |
|
| 11 |
90114-12015X2-00A2G |
Drain plug M12×1.5 |
1 |
|
| 12 |
GB/T16674.1-M6*50-F5J |
Bolt M6×50 |
1 |
|
| 13 |
GB/T16674.1-m6*60-F5J |
Bolt M6×60 |
2 |
|
| 14 |
GB/T16674.1-M6*65-F5J |
Bolt M6×65 |
3 |
|
| 15 |
90801-11024-010 |
Oil seal
（11.6×24×10） |
1 |
|
|
|
|
|
|
