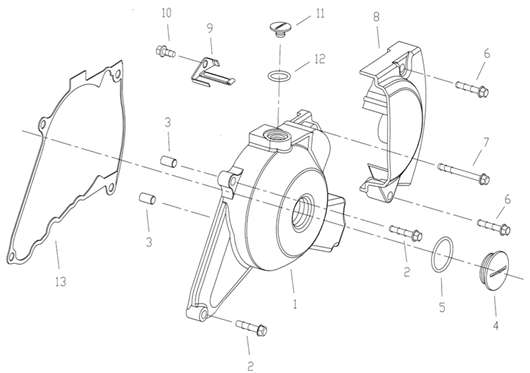

| E08 - L CRANKCASE CVR | ||||||
|
|
||||||
| ITEM | PART NO. | DESCRIPTION | QTY | |||
| 1 | 11400-FYIF3-000 | Crankcase cover,LH | 1 | |||
| 2 | GB/T16674.1-M6*30-F5J | Bolt M6×30 | 2 | |||
| 3 | 90411-08012-000 | Dowel pin 8×12 | 2 | |||
| 4 | E032003-FYIF3-0000 | Plug | 1 | |||
| 5 | 90727-FYXF-000 | O-ring 27×2 | 1 | |||
| 6 | GB/T16674.1-M6*25-F5J | Bolt M6×25 | 2 | |||
| 7 | GB/T16674.1-M6*50-F5J | Bolt M6×50 | 1 | |||
| 8 | 11462-FYIF3-000 | Cover,RL | 1 | |||
| 9 | 31116-FYIF3-000 | Wire clamp,magneto | 1 | |||
| 10 | GB/T5783-M6*16-A2F | Bolt M6×16 | 1 | |||
| 11 | E032002-FYIF3-0000 | Plug,watch hole | 1 | |||
| 12 | 90713-FYXF-000 | O-ring 13.5×2.4 | 1 | |||
| 13 | 11495-FYIF3-000 | Gasket,crankcase cover,LH | 1 | |||
