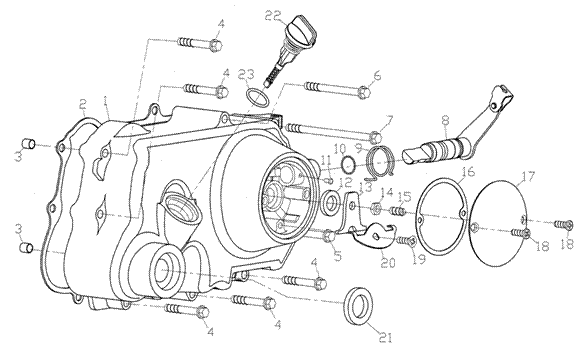

| E06 - R CRANKCASE CVR | ||||||
|
|
||||||
| ITEM | PART NO. | DESCRIPTION | QTY | |||
| 1 | E034000-FYIF3-0000 | Crankcase cover,RH | 1 | |||
| 2 | E034001-FYIF3-0000 | Gasket,crankcase cover,RH | 1 | |||
| 3 | 90411-08012-000 | Dowel pin 8×12 | 2 | |||
| 4 | GB/T16674.1-M6*40-F5J | Bolt M6×40 | 5 | |||
| 5 | GB/T16674.1-M6*80-F5J | Bolt M6×80 | 1 | |||
| 6 | GB/T16674.1-M6*65-F5J | Bolt M6×65 | 1 | |||
| 7 | GB/T16674.1-M6*100-F5J | BoltM6×100 | ||||
| 8 | 21410-FYIF3-000 | Controlling lever,clutch | 1 | |||
| 9 | 21416-FYIF3-000 | Spring | 1 | |||
| 10 | 90701-14001-000 | O-ring | 1 | |||
| 11 | 21411-FYIF3-000 | Set pin | 1 | |||
| 12 | 21421-FYIF3-002 | Oil seal | 1 | |||
| 13 | 21421-FYIF3-000 | Control plate | 1 | |||
| 14 | GB/T6170-M6-F5J | Nut M6 | 1 | |||
| 15 | 21421-FYIF3-001 | Adjusting screw | 1 | |||
| 16 | 11447-FYIF3-000-S | Wire clamp,ignition coil | 1 | |||
| 17 | 11356-FYIF3-000 | Clutch cover | 1 | |||
| 18 | GB/T818-M5*12-A3H | Screw M5×12 | 2 | |||
| 19 | GB/T819.1-M6*16-F5J | Screw M6×16 | 1 | |||
| 20 | 21422-FYIF3-000 | Press plate | 1 | |||
| 21 | 90801-13024-005 | Oil seal 13.7×24×5 | 1 | |||
| 22 | E040002-FYIF3-0000 | Dipstick | 1 | |||
| 23 | 90701-18003-000 | O-ring,dipstick | 1 | |||
