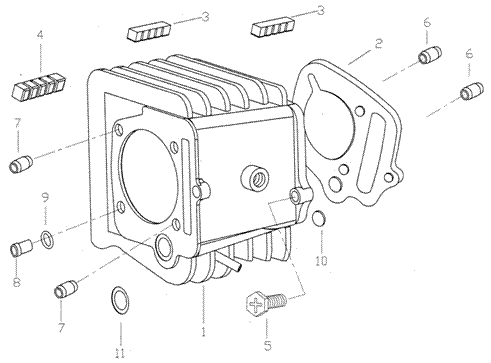

| E05 - CYLINDER | |||||
|
|
|||||
| ITEM | PART NO. | DESCRIPTION | QTY | ||
| 1 | 12000-FYIF3-000 | Cylinder Block | 1 | ||
| 2 | 12191-FYIF3-000 | Cylinder Gasket | 1 | ||
| 3 | E013002-FYYI-0000 | Cylinder block Rubber No.2 | 2 | ||
| 4 | E013003-FYYI-0000 | Rubber No.3 | 1 | ||
| 5 | GB/T29.2-M6*30-A2F | Bolt M6×30 | 1 | ||
| 6 | 90411-08012-000 | Set Pin | 2 | ||
| 7 | 90411-08014-000 | Cylinder Head Pin | 2 | ||
| 8 | 90414-08010-000 | Bushing | 1 | ||
| 9 | 90715-14018-002 | Rectangular Ring | 1 | ||
| 10 | 90715-11015-002 | Rectangular Ring 11.5×2.1 | 1 | ||
| 11 | 90715-15018-024 | 0-gasket15*18*2.4 | 1 | ||
