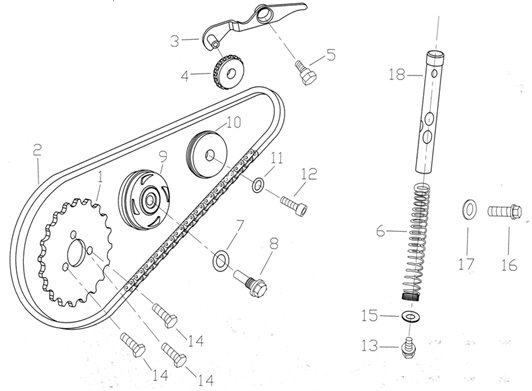

| E04 - TIMING CHAIN, TENSIONER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
14109-FYIF3-000 |
Timing Driven
Sprocket (32T) |
1 |
|
| 2 |
14440-FYIF3-000 |
Timing Chain |
1 |
|
| 3 |
E154300-FYIF3-000 |
Tensioning Arm Set |
1 |
|
| 4 |
E154301-FYIF3-0000 |
Chain Tensioner |
1 |
|
| 5 |
E154302-FYIF3-0000 |
Screw, Tensioning
Arm |
1 |
|
| 6 |
E154303-FYIF3-0000 |
Spring, Chain
Adjusting Set |
1 |
|
| 7 |
90301-08015-15AL0 |
plate
washer(8*15*1.5） |
1 |
|
| 8 |
E154401-FYYI-0000 |
Bolt. Tension
Trolley |
1 |
|
| 9 |
E154400-FYIF3-0000 |
Pivot, Guide Chain
Roller |
1 |
|
| 10 |
15133-FYIF3-000 |
Roller |
1 |
|
| 11 |
90301-07016-25AL0 |
Washer |
1 |
|
| 12 |
14563-FYIY3-000-S |
Chain Tension
Trolley Ⅱbolt |
1 |
|
| 13 |
14562-14012-000B |
gasket boltM14*1.5 |
1 |
|
| 14 |
GB/T5783-M5*12-A2F |
Gasket, Chain
Adjusting Set |
3 |
|
| 15 |
90301-14020-15AL0 |
gasket.tensioner |
1 |
|
| 16 |
GB/T16674-96-06035-L |
hex flange boltM6*18 |
1 |
|
| 17 |
90301-06010-10AL0 |
plate
washer(Φ6*Φ10*1） |
1 |
|
| 18 |
E154100-FYIF3-0000 |
tensioner bar assy |
1 |
|
|
|
|
|
|
|
