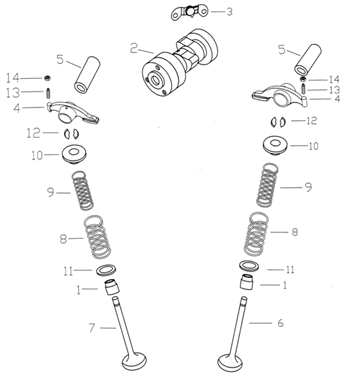

E03 - CAMSHAFT, VALVE
配气机构
ITEM   PART NO. DESCRIPTION QTY
1 E012105-FYIF3-0000 Oil Seal, Valve Stem 2
2 14100-FYIF3-000 Camshaft Comp. 1
3 14100-FYIF3-001 Auto Reductor Limit Plate 1
4 E152201-FYIF3-0000 Valve Rocker Arm 2
5 E152203-FYIF3-0000 Rocker Shaft 2
6 14711-FYIF3-000 Inlet Valve 1
7 14721-FYIF3-000 Exhaust Valve 1
8 E152105-FYIF3-0000 Outer Valve Spring 2
9 E152106-FYIF3-0000 Inner Valve Spring 2
10 E152108-FYIF3-0000 Spring Upper Retainer 2
11 28103-17023-1000K Outer Spring Retainer 2
12 E152109-FYIF3-0000 Valve Clamp 4
13 E152207-FYIF3-0000 Valve Adjusting Screw 2
14 E152208-FYIF3-0000 Locking Nut 2
