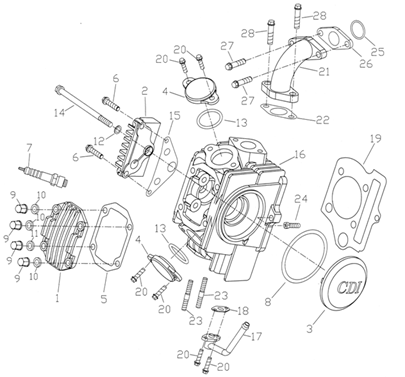

| E02 - CYLINDER HEAD COVER ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ITEM |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
12310-FYIF3-000 |
Cylinder Head Cover |
1 |
|
| 2 |
12332-FYIF3-000 |
Right Cover,
Cylinder Head |
1 |
|
| 3 |
12331-FYIF3-00L |
Left Cover, Cylinder
Head |
1 |
|
| 4 |
12335-FYIF3-000 |
Valve Cover |
2 |
|
| 5 |
12392-FYIF3-000 |
Gasket, Cylinder
Head Cover |
1 |
|
| 6 |
90103-06025-00F5J |
Screw M6×25 |
2 |
|
| 7 |
E000002-FYIF3-0000 |
Spark Plug |
1 |
|
| 8 |
12333-FYIF3-000 |
Left cover Gasket,
Cylinder head |
1 |
|
| 9 |
90204-07130-00F5J |
Nut M7 |
4 |
|
| 10 |
90301-071420-00A2F |
Steel Washer, Cylinder bolt |
3 |
|
| 11 |
90301-071420-Cu000 |
Copper Washer,
Cylinder bolt |
1 |
|
| 12 |
90301-06013-01AL0 |
Washer 6 |
1 |
|
| 13 |
90701-30003-002 |
O-Ring, Valve Cover |
2 |
|
| 14 |
GB/T5789-M6*110-F5J |
Bolt M6×110 |
1 |
|
| 15 |
12334-FYIF3-000[1] |
Right cover Gasket,
Cylinder head |
1 |
|
| 16 |
12200-FYIF3-000 |
Cylinder Head Set |
1 |
|
| 17 |
18291-FYIF3-000-S |
Air conduit |
1 |
|
| 18 |
18284-FYBT-001 |
Gasket |
1 |
|
| 19 |
12391-FYIF3-000 |
Gasket, Cylinder
Head |
1 |
|
| 20 |
GB/T16674.1-M6*16-F5J |
Bolt M6×16 |
6 |
|
| 21 |
16103-FYIF3-000 |
Inlet Pipe (64#) |
1 |
|
| 22 |
16105-FYIF3-000 |
Gasket, Inlet Pipe |
1 |
|
| 23 |
GB/T15389-M6*34-A2F |
Bolt M6×34 |
2 |
|
| 24 |
GB/T29.2-M6*23-A2F |
Bolt M6×23 |
1 |
|
| 25 |
90701-25002-004 |
Gasket, Carburetor |
1 |
|
| 26 |
16104-FYIF3-000 |
Heat-Isolating Mat,
Inlet Pipe |
1 |
|
| 27 |
GB/T16674.1-M6*30-F5J |
Bolt M6×30 |
2 |
|
| 28 |
90103-06028-00F5J |
Bolt M6×28 |
2 |
|
|
|
|
|
|
