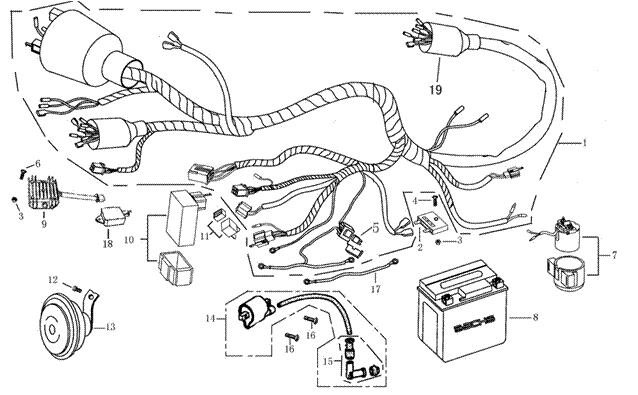

| F24.
WIRING HARNESS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
V201000-FYBQ-2000 |
Wiring Harness(Four
gear) |
1 |
|
| 2 |
38500-FY-000 |
Diode |
1 |
|
| 3 |
GB/T6187.1-M5-A2G |
Flange Nut M5 |
3 |
|
| 4 |
GB/T818-M5*20-A3H |
Screw M5*20 |
1 |
|
| 5 |
31533-FY20-000 |
Fuse(15A) |
1 |
|
| 6 |
GB/T819.1-M5*25-A2G |
Screw M5*25 |
2 |
|
| 7 |
35800-FYBQ-000 |
Start Relay |
1 |
|
| 8 |
31500-FY20-000 |
Battery
Assy(YTX7L-BS,EGLISH) |
1 |
|
| 9 |
31600-FY20-000 |
Rectifier (Full Wave) |
1 |
|
| 10 |
30400-FYBQ-400 |
C.D.I Comp(direct
current SMBD 90-F) |
1 |
|
| 11 |
38301-FYBQ-000 |
Flasher Comp |
1 |
|
| 12 |
GB/T9074.17-M6*12-A2G |
Combination Bolt
M6×12 |
1 |
|
| 13 |
38100-FYBQ-000 |
Horn(E-mark) |
1 |
|
| 14 |
30510-FY20-000 |
Ignition Coil Assy |
1 |
|
| 15 |
30513-FYG2-000 |
Cap,Spark Plug |
1 |
|
| 16 |
GB/T9074.4-M5*16-A2G |
Pan Bolt M5×16 |
2 |
|
| 17 |
32412-FYBQ-000 |
Cathode Cable |
1 |
|
| 18 |
V201130-FYBQ-0000 |
Speed Limiter (direct
current,with rubber,9400rpm) |
1 |
|
| 19 |
32181-FYBQ-000 |
PVC rubber
cover(φ25) |
1 |
|
|
|
|
|
|
|
