| F20.

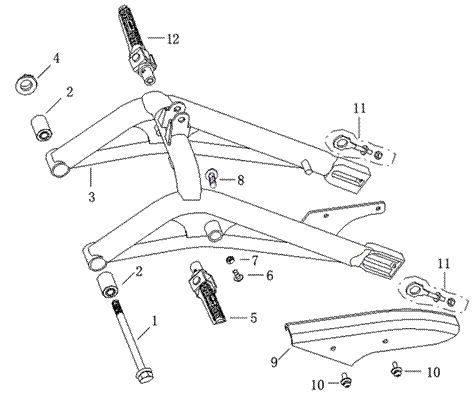

REAR SWINGARM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
| 1 |
52110-FYBQ-000 |
Swing Arm Axle (with
Nut M10×265×1.25) |
1 |
| 2 |
52220-FYBQ-000 |
Bush, Swing Arm |
2 |
| 3 |
V141100-FY20-0GR02 |
Rear Swing Arm Assy
(Grey） |
1 |
| 3 |
52100-FY20-00Y |
Rear Swing Arm Assy
(Yellow） |
1 |
| 3 |
52100-FY20-YGB |
Rear Swing Arm Assy
(Black silver) |
1 |
| 3 |
52100-FY20-00A |
Rear Swing Arm Assy
(Silver) |
1 |
| 4 |
GB/T6187.2-M10*1.25-A2G |
Lock Nut M10×1.25 |
1 |
| 5 |
50710-FYBQ-000 |
Pillion Footrest (Lh) |
1 |
| 6 |
GB/T818-M5*12-A2G |
Screw M5*12 |
2 |
| 7 |
GB/T6170-M5-A2G |
Nut M5 |
2 |
| 8 |
GB/T9074.1-M8*20-8.8-S1-L-A2G |
Combination Bolt
M8×20 |
2 |
| 9 |
40510-FY20-000 |
Chain Guard |
1 |
| 10 |
GB/T9074.4-M6*10-A2G |
Combination Bolt
M6×10 |
2 |
| 11 |
40540-FY20-000 |
Chain Adjuster |
2 |
| 12 |
50720-FYBQ-000 |
Pillion Footrest
(Rh) |
1 |
|
|
|
|
