| F19.

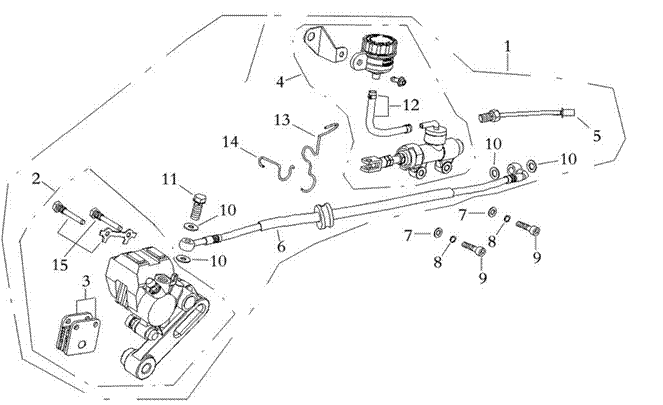

REAR BRAKE ASSY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NO. |
PART NO. |
DESCRIPTION |
QTY |
|
| 1 |
43200-FY20-10R |
Rear Brake Assy (Red) |
1 |
|
| 1 |
43200-FY20-1YGB |
Rear Brake Assy
(Black) |
1 |
|
| 2 |
43210-FY20-00R |
Rear Brake Caliper
Assy (Red) |
1 |
|
| 2 |
43210-FY20-YGB |
Rear Brake Caliper
Assy (Black) |
1 |
|
| 3 |
43235-FYBQ-300 |
Rear Brake Pad (Set) |
1 |
|
| 4 |
43230-FYBQ-30R |
Rear Brake Pump Assy
(Red) |
1 |
|
| 4 |
43230-FYBQ-3YGB |
Rear Brake Pump Assy
(Black) |
1 |
|
| 5 |
35360-FYBQ-300 |
Rear Brake Switch |
1 |
|
| 6 |
43260-FYBQ-300 |
Brake Hose, Rear
Brake |
1 |
|
| 7 |
GB/T95-6-A2G |
Washer Ø6 |
2 |
|
| 8 |
GB/T93-6-A2G |
Spring Washer Ø6 |
2 |
|
| 9 |
90117-06025-10C |
Screw M6x25 |
2 |
|
| 10 |
46016-FYBQ-000 |
Washer |
4 |
|
| 11 |
46015-FYBQ-000 |
Hollow Bolt |
1 |
|
| 12 |
43231-FY20-000 |
Brake Tube Comp |
1 |
|
| 13 |
43232-FY20-000 |
Brake Hose Clamp(Big) |
1 |
|
| 14 |
43233-FY20-000 |
Brake Hose
Clamp(Small) |
1 |
|
| 15 |
43270-FY20-000 |
Fixing Bolt Comp,
Rear Brake Pad |
1 |
|
|
|
|
|
|
|
|
|
